4G Wifi Router
3G 4G Wifi Router
3G 4G Wifi Router
3G 4G Wireless Router
Support 3G 4G switch to Wired or Wifi;

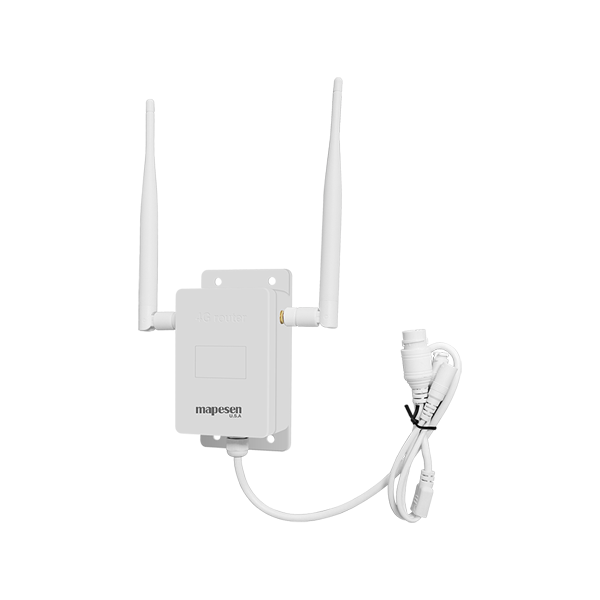

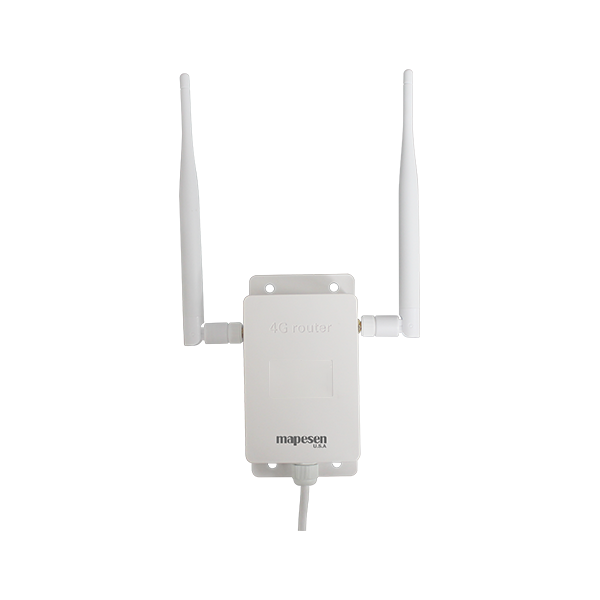

2pcs antenna(1xwifi,1x4G);1*RJ45 LAN;
Support wifi 802.11b/g/n;
Wifi access bandwidth 10-40MHZ (Default=20MHZ)
10-50M open space with no obstacles;
12V 1.5A
|
Model |
MP-4GRL1-A |
|
Wired Network Port |
|
|
LAN Port |
1PC LAN Port |
|
WIFI |
|
|
WIFI SSID |
MIFI-XXXX |
|
WIFI Password |
1234567890 |
|
WIFI Encryption |
Open,WPA-PSK,WPA2-PSK |
|
WIFI Channel |
Auto 1-11 COUNTRY:U5 |
|
WIFI Channel Bandwidth |
10-40MHZ(Default=20MHZ) |
|
Wireless LAN |
Support 802.11b/g/n |
|
Gateway |
192.168.100.1 |
|
Password |
Admin |
|
Coverage Distance |
Open area 10-50M |
|
Band Information |
|
|
Working Frequency |
LTE B1/B3/B8/B38/B39/B40/B41 |
|
WCDMA 2100/900MHz |
|
|
TD-SCDMA B34/B39 |
|
|
GSM/GPRS/EDGE:900/1800MHz |
|
|
Rate |
FDD-LTE/TDD-LTE: UL 50M/DL150Mbps |
|
HSPA[$add]: UP 5.76M/Down 21Mbps |
|
|
TD-SCDMA: UP 2.2Mbps/Down 2.8Mbps |
|
|
SIM&WIFI |
|
|
SIM |
Nano SIM Card |
|
Antenna |
1 x WIFI Antenna and 1 x 4G Antenna |
|
General |
|
|
Reload |
One key to restore factory settings |
|
Working Temperature |
0°C to 75 °C |
|
Storage Temperature |
-30°C to 75 °C |
|
Working Humidity |
10%-70% |
|
Storage Humidity |
5%-70% |
|
Voltage |
DC12V |
|
Current |
DC12V Average 150mA,Max 250mA |
