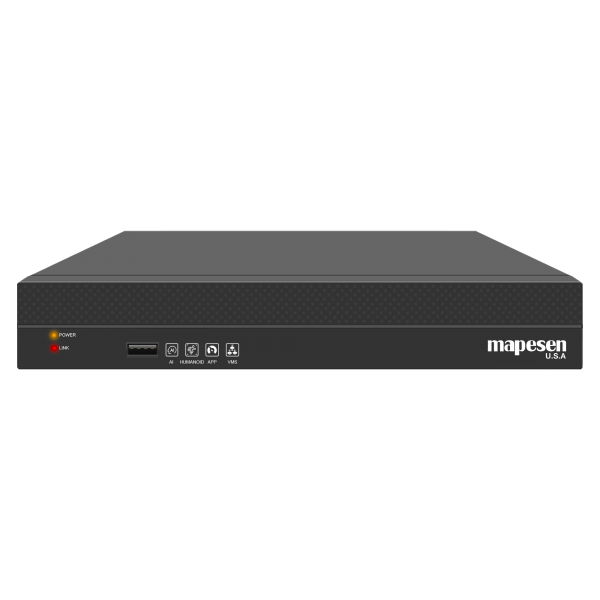

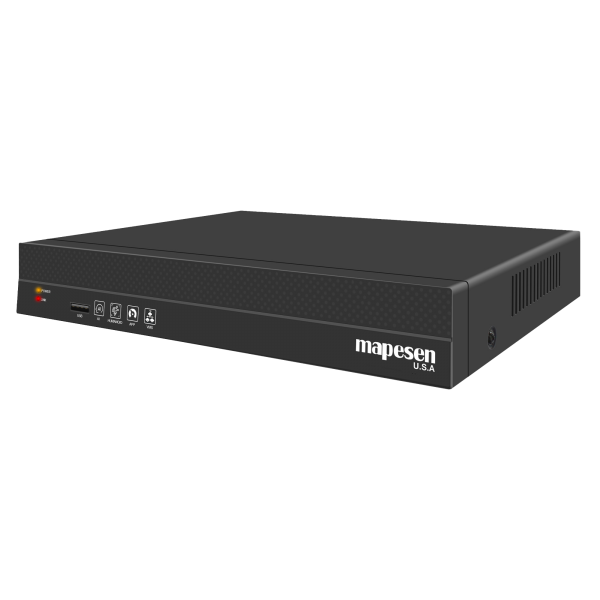

NVR-4K8236I-A/G

H.265 36CH 4K AI NVR Non POE

4K · Smart Analysis · with Audio Boardcasting System · Multi-channel Synchronous Playback · ONVIF · Support 2 HDD(2*16TB) · 1*1000M RJ45 Port
    Products
     36CH 4K AI NVR Non POE
    · 36CH/4K IPC Access,150M Bandwidth,Support Broadcasting Function.
    · Support Smart265,H265,H264 decode.
    · Support preview and playback image electronic magnification.
    · Support ONVIF,RTSP,GB28181 protocol.
    · Support RTMP push,DDNS,UPNP etc.function.
    · Support alarm snapshot,send alarm email .
    · Support SMART IPC smart analysis: motion detection, alarm input,human detection, line crossing detection,retrograde detection,absent alarm,loitering, area intrusion, illegal vehicle parking.
    · Support channel grouping, preview tour.
    · 9CH (1*4K) NVR synchronous playback, client software support maximum 4CH remote video playback.
    · Support HTML5 remote access.
    · Support disconnection complement function.
    · APP can be Shared with 32 Users.
    · Support Engineer Payment Collection Mode.
    · Support Max 2 HDD(16TB*2).
    Model NVR-4K8236I-A/G
    System
    Operating System Embedded LINUX
    Max Preview Channel 36CH
    Video & Audio Input
    Incoming Bandwidth 150Mbps
    IPC Input 4K/5MP/4MP/3MP/2MP/960P/720P
    Video & Audio Decoding
    IP Channel Resolution Main stream: up to 3840×2160Auxiliary stream: D1/CIF
    Video Compression Smart H.265/H.265 /H.264
    Audio Decoding G.711
    Preview/Playback 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Multi-screen Split 1/2/4/6/8/9/10/16/25/36 screen real-time preview
    Split Screen Decoding 1(4K),2(2*5MP),4(4*5MP),6(5MP[$add]5*1080P),8(5MP[$add]7*1080P),9(9*1080P),10(2*5MP[$add]8*D1),16(16*D1),25(25*D1),36(36*D1)
    Recording & Playback
    Recording Mode Timing recording, Alarm recording, timing and alarm recording
    Playback 9CH (1*4K) NVR synchronous playback, IMS client software support maximum 4CH remote video playback
    Playback Mode Search by time, calendar, event, channel
    Other Function
    Smart Functions Human Detection, Line-Crossing Detection, Vehicle Retrograde Detection, Staff Absence Detection, Loitering, Area Intrusion,Vehicle Illegal Parking (need front end IPC supported)
    Motion Detection Support
    Buzzer Support buzzer alarm
    PA System Support
    Storage & Backup
    SATA 2*SATA HDD
    Capacity Max 2*16TB HDD
    E-SATA No
    Backup Mode Portable hard disk/USB Device/Network
    Network
    Network Protocols TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181,etc.
    ONVIF Support
    P2P Support
    APP iPhone, Android
    PC Support
    User Management Maximum support 32 local user
    Online Upgrade Supports online NVR upgrade
    IPC Upgrade Support (specified model IPC)
    Other Support Channel Tour Round GroupingRTMP push
    Interface
    Network Interface 1pcs RJ45 10M/100M/1000M self-adaptive Ethernet interface
    USB Interface 3pcs USB2.0 Interfaces, Support mouse, USB upgrade, import and export
    Video Output VGA: 1CH,1920×1080,1280×1024,1280×720,1024×768
    HDMI:1CH,3840*2160, 1920×1080,1280×1024,1280×720,1024×768
    Audio Output 1CH 3.5mm Audio Output, HDMI, support IMS client audio and video preview and playback.
    Alarm No
    RS485 No
    General
    Installation Desktop Installation
    Power Supply DC12V 3A
    Consumption ≤30W
    Working Conditions Temperature: -10℃- [$add]55℃ Humidity: 10%∼90%
    Product Dimension
    Size (mm) 243*326*52mm(W×L×H)
