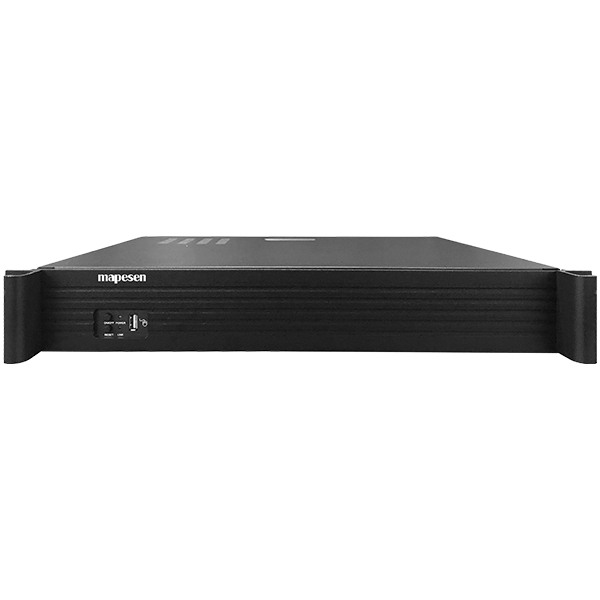

NVR-4K8436R-A/D/G/B (NVR-4K8436R-A/D/G/B/R)

H.265 36CH 4K AI NVR POE

4K · Smart Analysis · with Audio Boardcasting System · Multi-channel Synchronous Playback · ONVIF · Support 4 HDD(4*16TB) · 2*1000M RJ45 Port · Support 4CH Alarm In and 4CH Out
    Products
     36CH 4HDD 4K AI NVR Non POE
    · 36CH POE 4K IPC Access,Bandwidth Access 512M,Support Broadcasting Function.
    · Support Smart265,H265,H264 decode.
    · Real-time display and playback 16X digital zoom.
    · Support ONVIF,RTSP,GB28181 protocol.
    · Support RTMP push,DDNS,UPNP etc.function.
    · Plug&play,support IP camera parameter configuration & information import and export.
    · Support external alarm,two-way voice intercom.
    · VGA,HDMI simultaneously output.
    · Support SMART IPC smart analysis: motion detection, alarm input,human detection, line crossing detection,retrograde detection,absent alarm,loitering, area intrusion, illegal vehicle parking.
    · Support disk grouping quotas and disk set storage method.
    · Support access grouping,turning display in order.
    · Max 16CH 1080P/4CH 4K recording simultaneously playback  and multi-channel synchronous playback.
    · Support HTML5 remote access.
    · Double password authentication,zero channel function.
    · Support for network detection,remote upgrade,and easy upgrade the fireware of our IP camera directly through the NVR instead of the computer.
    · APP can be Shared with 32 Users.
    · Support Max 4HDD(16TB*4).
    · Support 4CH alarm In and 4CH out.
    Model NVR-4K8436R-A/D/G/B (NVR-4K8436R-A/D/G/B/R)
    System
    Operating System Embedded LINUX
    Max Preview Channel 36CH
    Video & Audio Input
    Bandwidth 512Mbps
    IPC Input 36CH IPC (8MP/D1[$add]36CH Preview[$add]16CH playback)
    Video & Audio Decoding
    Recording Resolution 4K/1080P/720P/D1
    Video Compression S.265/H.265/H.264
    Audio Compression G.711A/G.711U
    Preview 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
    Multi-screen Split Support 1/2/4/6/8/9/10/16/25/36 screen real-time preview
    Split-screen/Decoder 1(12MP) ,2(2*4K),4(4*4K),6(4K[$add]5*1080P),8(4K[$add]7*1080P),9(9*1080P),10(10*1080P),16(16*1080P),25(25*D1),36(36*D1)
    Recording & Playback
    Recording Mode Manual/Timing/Alarm recording
    Playback 4CH 4K, 16CH 1080P
    Playback Mode Regular payback, event playback
    Display Mode 36CH IPC access(8MP/D1[$add]36CH Preview[$add]16CH playback)
    Other Function
    Smart Detection Human Detection, Line-Crossing Detection, Area Intrusion, Loitering, Absent Detection, Vehicle Illegal Parking, Vehicle Retrograde (need front end IPC supported)
    Motion Detection Support
    PA System Support
    Alarm Push Alarm Capture, send alarm information by email
    Storage
    SATA 4*SATA HDD
    ESATA No
    Capacity Max 4*16TB HDD
    Storage Path Local hard disk
    Backup Method USB portable HDD, USB device
    RAID No
    Network
    Network Protocols TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP, DDNS, UPNP,GB28181
    Channel Connection Protocol ONVIF,SLINK(private protocol),RTSP
    P2P Support
    APP iPhone, Android
    PC Support
    Login HTML5 remote login operation
    User Management Maximum support 32 local user
    Online Upgrade Supports online NVR upgrade
    IPC Upgrade Support
    Other Support to maintain IPC under private protocol, including restore, restart, enable or disable all network functionSupport disconnected network supplement functionSupport Channel Tour Round GroupingRTMP push
    Interface
    Network Interface 2pcs RJ 45 1000M Port
    USB Interface 3pcs USB 2.0
    Video Output VGA: 1CH,1920×1080,1280×1024,1280×720,1024×768
    HDMI:1CH,3840*2160, 1920×1080,1280×1024,1280×720,1024×768
    Audio I/O 1/1 3.5mm TRS Port
    Alarm I/O 4CH alarm input /4CH alarm output
    RS-485 1 pc standard RS-485 serial interface
    HDMI 1 pc
    General
    Installation Desktop Installation
    Power Supply DC12V 8A
    Consumption ≤60W(without HDD)
    Working Conditions Temperature: -10℃∼55℃; Humidity: 10%∼90%
    Product Dimension
    Size (mm) 440*355*70mm(W×L×H)
