4CH 8CH 16CH 5MN DVR

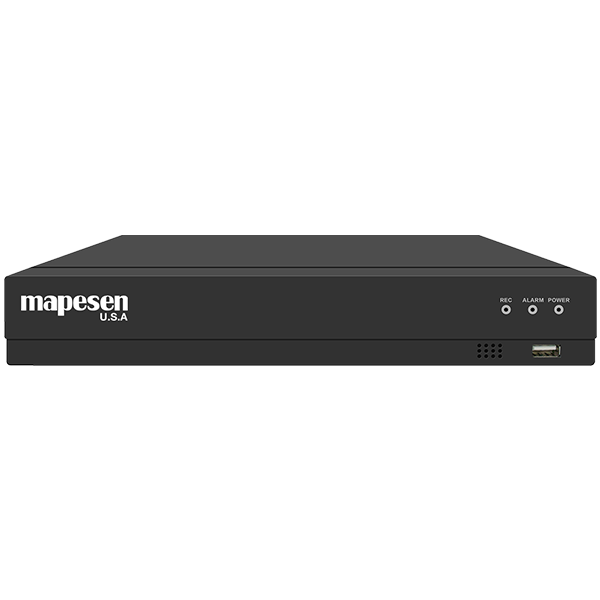

4CH 8CH 16CH 5MN H.265 5-In-1 Hybrid DVR

4CH/8CH 5MN@20fps/16CH 5MN@12fps · Coaxial Audio Transmission · Support Synchronous Playback · ONVIF · Support 1HDD(1*8TB) · 1 HDMI · 1 VGA · 1 Audio Input/Output
    Products
    · TVI/AHD/CVI/CVBS/IPC five-in-one function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.
    · Easily implement network penetration through cloud services and remote monitoring in one step.
    · Supports various mobile phone monitoring (iPhone/Android).
    · Support multiple web browsers (IE/Chrome/Firefox/Safari).
    · Support VGA, HDMI output at the same time.
    · Powerful network services (supporting DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, Email, etc.), complete supporting facilities (WEB, client, SDK), easily achieve interconnection and interoperability.
    · Supports more than 20 languages and breaks the limits of national borders.
    · Freely change the startup interface and choose the interface style.
    · Support face human detection functions.
    · Support STVI function.
    · Support coaxial audio.
    Model XVR-HME8104S-S1
    System
    Operating System Embedded LINUX
    Video
    Encoding Format H.265
    Monitor Quality VGA, HDMI
    Preview Ability 4*5MN@20fps
    Encode Ability 4*5MN @12fps
    Decode Ability 4*5MN@12fps
    Channel Mode Support any channel mode combination (5MN analog [$add] 5M digital)
    Motion Detection Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel)
    Audio
    Audio 4CH Coaxial Audio (Specified camera only)
    Audio Input 1CH AV Ports
    Audio Output 1CH AV Ports
    Record & Playback
    Real-time Video Channels 4CH non-real-time
    Record Mode Timing, manual, motion detection
    Local Playback 4CH simultaneous playback
    Search Mode Search by time, calendar, event, channel
    Storage & Backup
    Video Storage HDD
    Backup Mode USB mobile hard disk, U disk, USB DVD burner
    Network
    Network Connection 1 RJ45 10/100Mbps self-adaptive port
    Network Protocol TCP/IP, DHCP, DNS, DDNS, PPPOE, SMTP, NTP,UPNP,Email,etc.
    Browser Support multiple web browsers(IE/Chrome/Firefox/Safari)
    APP Support iPhone, Android
    PC Support
    External Interface
    Video Input 4CH BNC
    Video Output 1CH VGA 1080P
    1ch HDMI 1080P
    Audio I/O 1/1
    Network Interface 1CH RJ45 10M/100M self-adaption
    RS485 No
    PTZ Control Support kinds of PTZ protocols(coaxial)
    USB 3* USB 2.0 ports
    HDD 1*SATA ports (Max 8TB/per)
    General
    Language More than 20 languages
    Power Supply DC 12V/2A
    Power Consumption <10W (without HDD)
    Working Temperature -10℃ - [$add]60℃
    Working Humidity 10%—90%
    Model XVR-HME8108S-S1
    System
    Operating System Embedded LINUX
    Video
    Encoding Format H.265
    Monitor Quality VGA, HDMI
    Preview Ability 8*5MN@12fps
    Encode Ability 8*5MN @6fps
    Decode Ability 8*5MN@6fps
    Channel Mode Support any channel mode combination (5MN analog [$add] 5M digital)
    Motion Detection Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel)
    Audio
    Audio 8CH Coaxial Audio (Specified camera only)
    Audio Input 1CH AV Ports
    Audio Output 1CH AV Ports
    Record & Playback
    Real-time Video Channels 8CH non-real-time
    Record Mode Timing, manual,motion detection
    Local Playback 8CH simultaneous playback
    Search Mode Search by time, calendar, event, channel
    Storage & Backup
    Video Storage HDD
    Backup Mode USB mobile hard disk, U disk, USB DVD burner
    Network
    Network Connection 1 RJ45 10/100Mbps self-adaptive port
    Network Protocol TCP/IP, DHCP, DNS,DDNS, PPPOE,FTP,NTP,UPNP,SMTP,Email,etc.
    Browser Support multiple web browsers(IE/Chrome/Firefox/Safari)
    APP Support iPhone, Android
    PC Support
    External Interface
    Video Input 8CH BNC
    Video Output 1CH VGA 1080P
    1CH HDMI 1080P
    Audio I/O 1/1
    Network Interface 1CH RJ45 10M/100M self-adaption
    RS485 No
    PTZ Control Support kinds of PTZ protocols(coaxial)
    USB 3* USB 2.0 ports
    HDD 1*SATA ports (Max 8TB/per)
    General
    Language More than 20 languages
    Power Supply DC 12V/2A
    Power Consumption <10W (without HDD)
    Working Temperature -10℃ - [$add]60℃
    Working Humidity 10%—90%
    Model XVR-HME8116S-S1
    System
    Operating System Embedded LINUX
    Video
    Encoding Format H.265
    Monitor Quality VGA, HDMI
    Preview Ability 16*5MN@12fps
    Encode Ability 16*5MN @6fps
    Decode Ability 16*5MN@6fps
    Multi-mode Input Support any channel mode combination (5MN analog [$add] 5M digital)
    Motion Detection Each screen can be set to 192 (16 * 12) detection areas;Multi-level sensitivity can be set (Limited local channel)
    Audio
    Audio 16CH Coaxial Audio (Specified camera only)
    Audio Input 1CH AV Ports
    Audio Output 1CH AV Ports
    Record & Playback
    Real-time Video Channels 16CH non-real-time
    Record Mode Timing, manual,motion detection
    Local Playback 16CH simultaneous playback
    Search Mode Search by time, calendar, event, channel
    Storage & backup
    Video Storage HDD
    Backup Mode USB mobile hard disk, USB DVD burner, U disk
    Network
    Network Connection 1 RJ45 10/100Mbps self-adaptive port
    Network Protocol TCP/IP, DHCP, DNS,DDNS, PPPOE,FTP,NTP,UPNP,SMTP,Email,etc.
    Browser Support multiple web browsers(IE/Chrome/Firefox/Safari)
    APP Support iPhone, Android
    PC Support
    External Interface
    Video Input 16CH BNC
    Video Output 1CH VGA 1080P
    1ch HDMI 1080P
    Audio I/O 1/1
    Network Interface 1CH RJ45 10M/100M self-adaption
    RS485 No
    PTZ Control Support kinds of PTZ protocols(coaxial)
    USB 3* USB 2.0 ports
    HDD 1*SATA ports (Max 8TB/per)
    General
    Language More than 20 languages
    Power Supply 12V/2A
    Power Consumption <20W (without HDD)
    Working Temperature -10℃ - [$add]60℃
    Working Humidity 10%—90%, Atm:86kpa—106kpa
