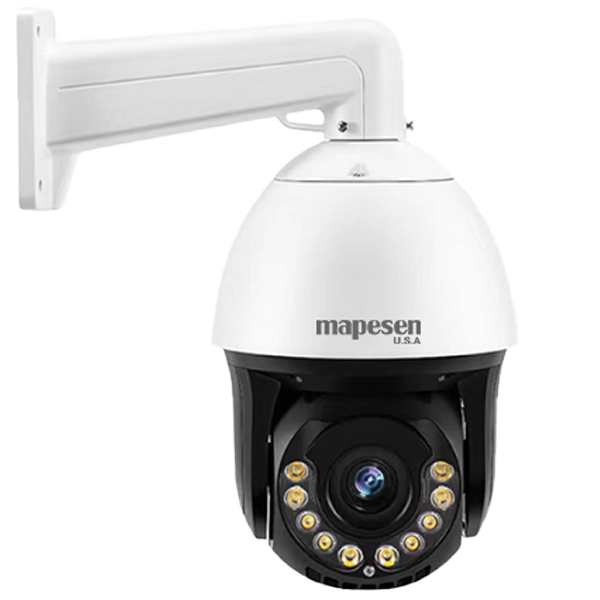

B602 PTZ Series

22X/25X Smart Hybrid Light POE Network PTZ Dome Camera

22X/25X Optical Zoom · Smart Hybrid Light · Human Detection · Two-Way Audio · Max 128G On Board Storage · ONVIF · DWDR · 3D DNR · IP66 Waterproof
    Products
      6 INCH Hybrid Light Speed Dome Camera 22X/25X with POE,Two-Way Audio
    · 265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.
    · Horizontal Angle:0-360°,Vertical Angle 0-90°,Pan 0-30°/S /Tilt Speed 0-20°/S.
    · Support 128pcs Preset Points,Crusing,Guarding Point.
    · 10PCS Smart Hybrid Light (Able to set Intelligent Mode/Infrared Mode),IR Distance up to 120m,
       Full Color Distance up to 80m.
    · AI Humanoid Detection/Tracking,Vehicle Detection,Motion Detection Alarm.
    · Built-in TF Card Slot, Max Support 128G(512G requires high quality).
    · DC12V / POE(IEEE.802.3af),Support P2P.
    · AGC,DWDR,3D DNR, BLC,4KV Lighting Protection,Metal and Plastic PTZ Dome,IP66 Waterproof.
    Model Number B602TS40Z1A2-P
    Camera
    Image Sensor 1/3" CMOS Image Sensor
    Resolution 4.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps
    Video Resolution 2560×1440@25fps
    Audio Compression Standard G711u/64Kbps
    Min. Illumination Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    IR LEDs 10PCS hybrid Light
    IR Distance Warm Light 80m,IR Light 120m
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,tint
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 4.7-84.6mm
    Optical Zoom 22X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0~360°
    Horizontal Speed 0~ 30°/ s
    Tilt 0~90°
    Vertical Speed 0~ 20°/ s
    Preset 128pcs Preset Point
    Cruise Support
    A-B Scan Support
    Guard Point Support
    Home Position Support, preset position, cruise, linear scan option
    Power-off Memory Support
    Event
    Detection AI Human Detection and Tracking,Motion Detection
    Alarm Support motion detection alarm linkage,Support center reminder and screen pop-up linkage after motion detection alarm.
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181,etc
    Connection Protocol ONVIF2.4
    ONVIF Support
    P2P Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Web Access Support
    Interface
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max 128G
    Alarm I/O No
    General
    Power DC12V 5A / POE
    POE Support
    Working Temperature -10 °C to 50 °C
    Working Humidity <90%
    Power Consumption Max 20W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B602TS50Z1A2-P
    Camera
    Image Sensor 1/2.8" CMOS Sensor
    Resolution 5.0MP 2880x1620@25fps
    Code Format H.265[$add]/H.265/H.264
    Compressed Output Bit Rate 200Kbps~8000Kbps adjustable
    Audio Compression Standard G.711
    Min. Illumination Color 0.001Lux @ F1.2(AGC ON),B/W:0LUX(IR ON)
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    IR LEDs 10PCS hybrid Light
    IR Distance Warm Light 80m,IR Light 120m
    E-Shutter 1/5s~1/100000S
    WDR Digital WDR
    DNR 2D/3D DNR
    BLC Support
    Exposure Support
    White Balance Support
    Gain Control Support
    Lens
    Lens 4.7-84.6mm Lens
    Optical Zoom 22X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0~360°
    Horizontal Speed 0~ 30°/ s
    Tilt 0~90°
    Vertical Speed 0~ 20°/ s
    Preset 128 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    Guard Point Support
    Home Position Support, preset position, cruise, linear scan option
    Power-off Memory Support
    Event
    Human Detection Support human detection and tracking
    Motion Detection Support
    Alarm Linkage Support motion detection alarm linkage,Support center reminder and screen pop-up linkage after motion detection alarm.
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181,etc
    Connection Protocol ONVIF2.4
    P2P Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Web Access Support
    Interface
    Network Interface 1*RJ45 10M/100M self-adaptive Ethernet Port
    Power 1pcs DC female head
    Storage Built-in Micro TF card slot, Max 128G,timing recording and alarm recording storage
    Alarm I/O No
    Audio Built-in microphone and speaker
    General
    Power DC12V 5A / POE
    POE Yes
    Working Temperature -10 °C to 50 °C
    Working Humidity <90%
    Power Consumption Max 20W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B602TS50Z5A2-P
    Camera
    Image Sensor 1/2.8" CMOS Sensor
    Resolution 5.0MP 2880x1620@25fps
    Code Format H.265[$add]/H.265/H.264
    Compressed Output Bit Rate 200Kbps~8000Kbps adjustable
    Audio Compression Standard G.711
    Min. Illumination Color 0.001Lux @ F1.2(AGC ON),B/W:0LUX(IR ON)
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    IR LEDs 10PCS hybrid Light
    IR Distance Warm Light 80m,IR Light 120m
    E-Shutter 1/5s~1/100000S
    WDR Digital WDR
    DNR 2D/3D DNR
    BLC Support
    Exposure Support
    White Balance Support
    Gain Control Support
    Lens
    Lens 5.3-130mm Lens
    Optical Zoom 25X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0~360°
    Horizontal Speed 0~30°/ s
    Tilt 0~90°
    Vertical Speed 0~20°/ s
    Preset 128 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    Guard Point Support
    Home Position Support, preset position, cruise, linear scan option
    Power-off Memory Support
    Event
    Human Detection Support human detection and tracking
    Motion Detection Support
    Alarm Linkage Support motion detection alarm linkage,Support center reminder and screen pop-up linkage after motion detection alarm.
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181,etc
    Connection Protocol ONVIF2.4
    P2P Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Web Access Support
    Interface
    Network Interface 1*RJ45 10M/100M self-adaptive Ethernet Port
    Power 1pc DC female head
    Storage Built-in Micro TF card slot, Max 128G,timing recording and alarm recording storage
    Alarm I/O No
    Audio Built-in microphone and speaker
    General
    Power DC12V 5A / POE
    POE Support
    Working Temperature -10 °C to 50 °C
    Working Humidity <90%
    Power Consumption Max 20W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B602TS80Z1LA2-P
    Camera
    Image Sensor 1/2.8" SONY CMOS Image Sensor
    Resolution 8.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 500Kbps~8000Kbps
    Video Resolution 3840x2160@20fps
    Audio Compression Standard G711u/64Kbps
    Min. Illumination Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 60m,IR Light 100m
    IR LEDs 9PCS*Infrared Leds[$add]6PCS*White Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,chroma
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 4.7-84.6mm
    Optical Zoom 22X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 30°/s
    Tilt 0~90°
    Vertical Speed 20°/s
    Preset 16 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    NETWORK
    Network Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP
    Connection Protocol ONVIF2.4
    P2P Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Web Access Google Kernel Browser(Plug in Free)
    Interface
    Network Interface 1*RJ45 10M/100M Self-adaptation Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max 128G
    Alarm I/O No
    General
    Power POE /DC12V 3A
    Working Temperature -20 °C to 60 °C
    Working Humidity <90% (no frostless)
    Power Consumption ≤20W
    Housing Plastic and Metal PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
