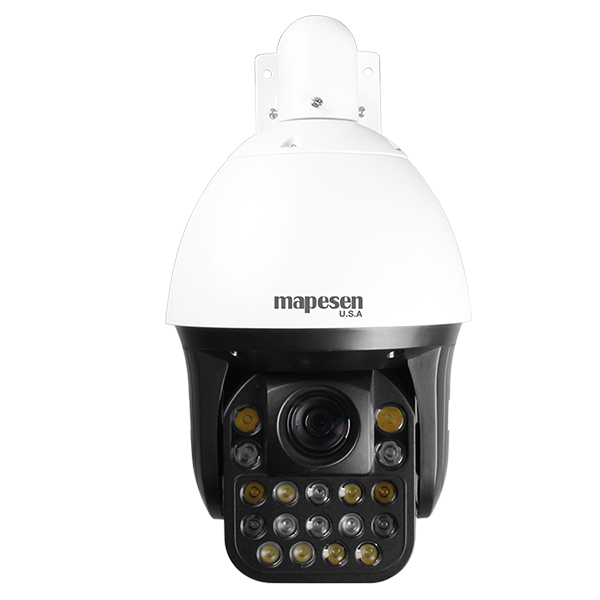

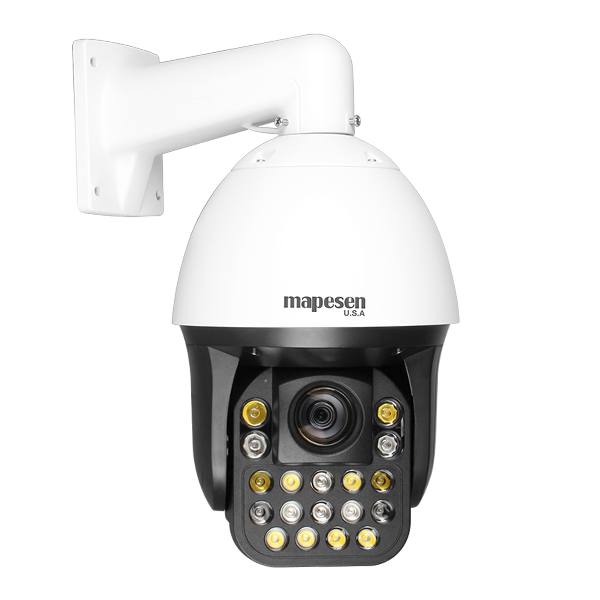

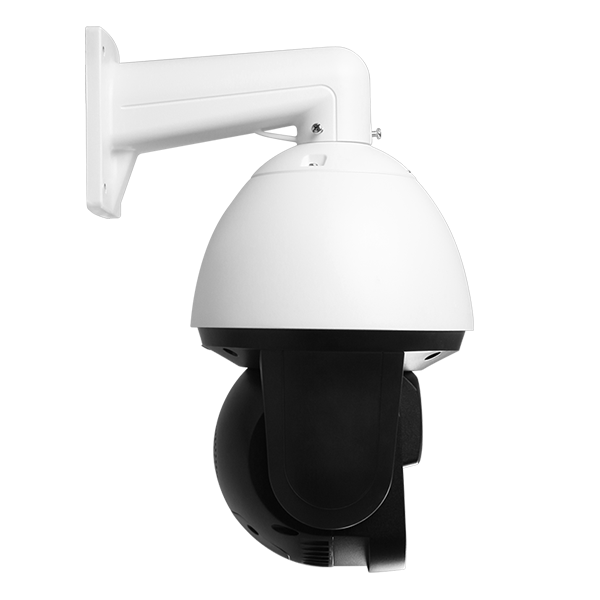

B702 PTZ Series

22X/25X/33X Smart Hybrid Light POE Network PTZ Dome Camera

22X/25X/36X Optical Zoom · Smart Hybrid Light · Human Detection · Two-Way Audio · Max 128G On Board Storage · ONVIF · DWDR · 3D DNR · IP66 Waterproof
    Products
      7 INCH Hybrid Light Speed Dome Camera 22X/25X/36X with POE,Two-Way Audio
    · 265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.
    · Horizontal Angle:0-360°,Vertical Angle 0-90°,Pan 0-30°/S /Tilt Speed 0-20°/S.
    · Support 128pcs Preset Points,Crusing,Guarding Point.
    · Smart Hybrid Light 8*Infared Leds+10*Warm Light (Able to set Intelligent Mode/Infrared
       Mode/Full Color Mode), IR Distance up to 150M,Full Color Distance up to 120m.
    · AI Humanoid Detection/Tracking,Vehicle Detection,Motion Detection Alarm.
    · Built-in TF Card Slot, Max 128G(512G requires high quality)..
    · DC12V / POE(IEEE.802.3af),Support P2P.
    · AGC,DWDR,3D DNR, BLC,4KV Lighting Protection,Metal and Plastic PTZ Dome,IP66 Waterproof.
    Model Number B702TS50Z1A2-P
    Camera
    Image Sensor 1/2.8" Low Illumination CMOS
    Resolution 5.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps adjustable
    Video Resolution 2880x1620@25fps
    Audio Compression Standard G711u/64Kbps
    Min. Illumination Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 120m,IR Light 150m
    IR LEDs 8PCS*Infrared Leds[$add]10PCS*Warm Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,chroma
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 4.7 ~84.6mm
    Optical Zoom 22X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 30°/s
    Tilt 0~90°
    Vertical Speed 20°/s
    Preset 128 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    Home Position Support, preset position, cruise, linear scan option
    Function
    Human Detection Support human detection and tracking
    Motion Detection Support
    Alarm Motion Detection/Human Detection and Tracking Alarm
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP ,P2P,PPTP,GB/T28181,etc
    Web Access Support
    ONVIF Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Interface
    Network Interface 1*RJ45 10M/100M Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max128G
    General
    Power DC12V5A/POE
    POE IEEE802.3bt
    Working Temperature -20 °C to 50 °C
    Working Humidity <90% (no frostless)
    Power Consumption Max 23W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B702TS50Z5A2-P
    Camera
    Image Sensor 1/2.8" Low Illumination CMOS
    Resolution 5.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps adjustable
    Video Resolution 2880x1620@25fps
    Audio Compression Standard G711
    Min. Illumination Color: 0.01Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 120m,IR Light 150m
    IR LEDs 8PCS*Infrared Leds[$add]10PCS*Warm Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,chroma
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 5.3 ~130mm
    Optical Zoom 25X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 0~30°/s
    Tilt 0 °~90°
    Vertical Speed 0~20°/s
    Preset 128 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    Home Position Support, preset position, cruise, linear scan option
    Function
    Human Detection Support human detection and tracking, vehicle detection
    Motion Detection Support
    Alarm Motion Detection/Human Detection and Tracking Alarm
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP ,P2P,PPTP,GB/T28181,etc
    Web Access Support
    ONVIF Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Interface
    Network Interface 1*RJ45 10M/100M Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max128G
    General
    Power DC12V5A/POE
    POE Support
    Working Temperature -20 °C to 50 °C
    Working Humidity <90% (no frostless)
    Power Consumption ≤25W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, 6KV surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B702TS50Z6A2-P
    Camera
    Image Sensor 1/2.8" Low Illumination CMOS
    Resolution 5.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps adjustable
    Video Resolution 2880x1620@25fps
    Audio Compression Standard G711
    Min. Illumination Color: 0.01Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 120m,IR Light 150m
    IR LEDs 8PCS*Infrared Leds[$add]10PCS*Warm Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,tint
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 5.3 ~190mm
    Optical Zoom 36X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 0~30°/s
    Tilt 0 °~90°
    Vertical Speed 0~20°/s
    Preset 128 PCS
    Cruise Support
    Auto-Scan(A-B) Support
    Home Position Support, preset position, cruise, linear scan option
    Function
    Human Detection Support human detection and tracking, vehicle detection
    Motion Detection Support
    Alarm Motion Detection/Human Detection and Tracking Alarm
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP ,P2P,PPTP,GB/T28181,etc
    Web Access Support
    ONVIF Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Interface
    Network Interface 1*RJ45 10M/100M Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max128G
    General
    Power DC12V 5A/POE
    POE Support
    Working Temperature -20 °C to 50 °C
    Working Humidity <90% (no frostless)
    Power Consumption ≤25W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, 6KV surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B702TS80Z1A2-P
    Camera
    Image Sensor 1/2.8" Low Illumination SONY CMOS
    Resolution 8.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps adjustable
    Video Resolution 8MP 3840x2160@20fps
    Video Frame Rate Mainstream:3840x2160@20fpsSubstream:800x448,640x480,640x360,480x360,352x288
    Audio Compression Standard G711u/64Kbps
    Min. Illumination Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 120m,IR Light 150m
    IR LEDs 8PCS*Infrared Leds[$add]10PCS*Warm Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,tint
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 4.7 ~84.6mm
    Optical Zoom 22X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 30°/s
    Tilt 0~90°
    Vertical Speed 25°/s
    Preset 128 PCS
    A to B Scanning Position Arbitrary Settings
    Cruise Support
    Other Support Mechanical Zero Calibration
    Function
    Human Detection Support human detection and tracking
    Motion Detection Support
    Alarm Motion Detection/Human Detection and Tracking Alarm
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP ,P2P,PPTP,GB/T28181,etc
    Web Access Support IE,Built-in web server to facilitate the user to usethe standard IE browser to achieve the front end of the real-time browsing andsetting management
    ONVIF Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Interface
    Network Interface 1*RJ45 10M/100M Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max128G
    General
    Power DC12V 5A/POE
    POE Support
    Working Temperature -20 °C to 50 °C
    Working Humidity <90% (no frostless)
    Power Consumption Max 23W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
    Model Number B702TS80Z6A2-P
    Camera
    Image Sensor 1/2.8" Low Illumination SONY CMOS
    Resolution 8.0MP
    Code Format H.265[$add]/H.265/H.264
    Output Bit Rate 200Kbps~8000Kbps adjustable
    Video Resolution 8MP 3840x2160@20fps
    Video Frame Rate Mainstream:3840x2160@20fpsSubstream:800x448,640x480,640x360,480x360,352x288
    Audio Compression Standard G711u/64Kbps
    Min. Illumination Color: 0.001Lux @F1.2, B/W: 0Lux with IR on
    Light Distance Warm Light 120m,IR Light 150m
    IR LEDs 8PCS*Infrared Leds[$add]10PCS*Warm Leds
    Day & Night Mode Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
    Auto Control Warm Light Auto
    Image Quality Adjust Brightness,contrast,sharpness,saturation,chroma
    WDR D-WDR
    DNR 3D DNR
    White Balance Auto/Indoor/Outdoor/Manual
    Gain Control High/Middle/Low
    Lens
    Lens 5.3 ~190mm
    Optical Zoom 36X Optical Zoom
    E-Shuttle 1/1 ~ 1/30000s
    Near Focus 100mm ~ 1000mm (Near ~Far Focus)
    Zoom Speed About 4S(Optics Far-Tele)
    Lens Initialization Built-in
    PTZ
    Pan 0 °~ 360°
    Horizontal Speed 30°/s
    Tilt 0~90°
    Vertical Speed 25°/s
    Preset 128 PCS
    A to B Scanning Position Arbitrary Settings
    Cruise Support
    Other Support Mechanical Zero Calibration
    Function
    Human Detection Support human detection and tracking
    Motion Detection Support
    Alarm Motion Detection/Human Detection and Tracking Alarm
    NETWORK
    Network Protocol HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP ,P2P,PPTP,GB/T28181,etc
    Web Access Support IE,Built-in web server to facilitate the user to usethe standard IE browser to achieve the front end of the real-time browsing andsetting management
    ONVIF Support
    Mobile Remote Control Support Android & iOS system mobile to access
    PC Support
    Interface
    Network Interface 1*RJ45 10M/100M Ethernet Port
    Power 1pcs DC female head
    Audio Built-in microphone and speaker
    Storage Built-in Micro TF card slot, Max128G
    General
    Power DC12V5A/POE
    POE IEEE802.3bt
    Working Temperature -20 °C to 50 °C
    Working Humidity <90% (no frostless)
    Power Consumption Max 23W
    Housing Metal and Plastic PTZ Dome
    Protection TVS3000V lightning protection, surge protection, voltage transient protection
    Weather Proof IP66
