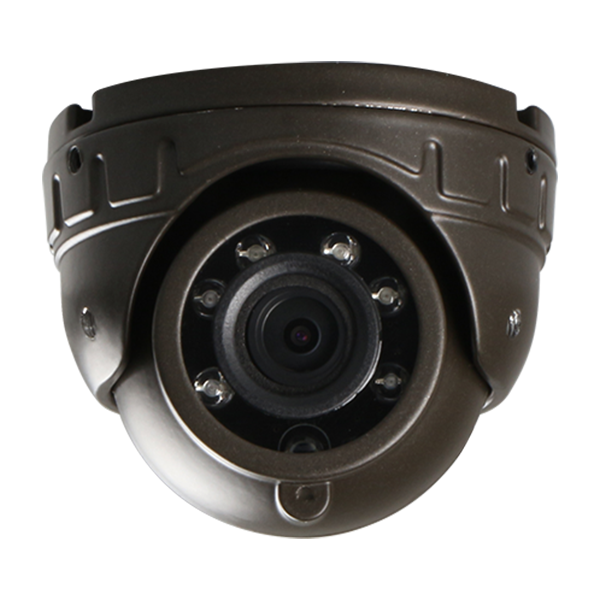

2MP Indoor Network Mini Car Camera Front View / Rear View
| Model Number | C2HQ200FA-C |
| Camera | |
| Image Sensor | 1/2.9" low illumination CMOS sensor |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/30(1/25) |
| Lens | |
| Lens Type | [email protected] Fixed Lens |
| Lens Resolution | 3MP |
| Illuminator | |
| Light Distance | 10~15m |
| IR LEDs | 12cs Infrared LEDs |
| Day & Night Mode | Infrared Mode: B/W |
| Video | |
| Max. Image Resolution | 2MP(1920*1080)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 2MP(1920*1080@25fps/30fps)Sub-Stream: D1(720*576),864*480,VGA(640*360),Q720P(640*360),CIF(352*288),320*240 |
| Video Bit Rate | 16Kbps-4000Kbps support self-adjustable as needed |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma adjustable |
| WDR | Digital WDR(Off/Low/Middle/High) |
| Noise Reduction | 3D DNR (Off/Low/Middle/High) |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay(OSD) | Multi-line OSD with Customizable Color,Customizable OSD Overlays (Title, Time, Date) |
| Audio | |
| Audio Input | Support, built-in microphone |
| Audio Output | No |
| Audio Compression | G.711U/A 64Kbps |
| Network | |
| Network Interface | 1*6P Vehicle Aviation Connector |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP |
| Connection Protocol | SLINK,ONVIF,GB28181(optional) |
| P2P | NO(Via NVR) |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Preview Simultaneously Video Number | 2 |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection Alarm |
| Basic Event | |
| Motion Detection | Set detection area,can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area |
| Privacy Mask | Support 4 area |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Interface | |
| Video Output | 1*6P Vehicle Aviation Connector |
| On-Board Storage | No |
| General | |
| Power Supply | DC12V±10% |
| Power Consumption | Max 6W |
| Surge Protection | 6KV |
| Housing | Metal Housing |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 0%-90% (Non-condensing) |
