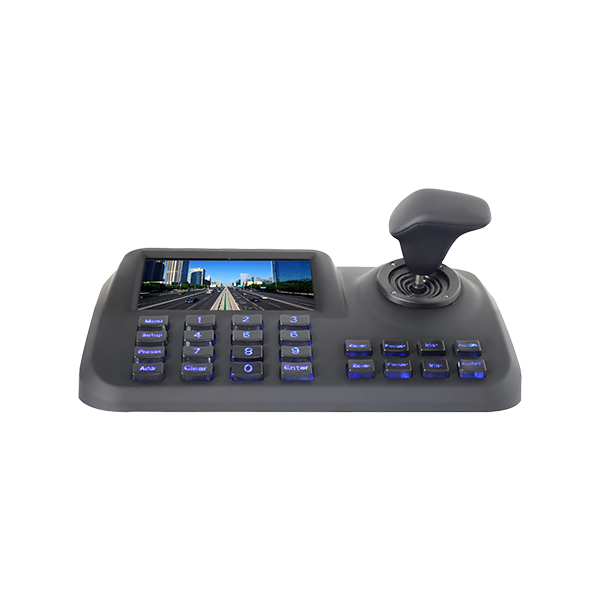

    IP Keyboard Controller
    5’’ Colorful LED Display,ONVIF2.4 ,H.265 Compatible,Plug and Play,Automatically Add and Distribute IP Address,3D Jostick, Support HDMI Output,Setting Preset,Tour and Zoom,1*RJ45,DC12V.
    It can be applied to installed in Multi-IP PTZ camera places, such as school, hospital, hotel, factory, workshop, etc., to realize the unified control of the Onvif protocol in the LAN.
    Model NO K200-IP
    Type Network Keyboard
    ONVIF Support/ONVIF2.4
    Control Way Network
    Interface 1xRJ45 , 1xRS485 interface(reserved) , 1xDC12V DC interface, 1xHDMI output, 1xUSB interface, allows for arbitrary switching of the main console display. (Equipped with built-in matrix switching functionality.)
    Baud Rate 9600bps
    Joystick 3D Joystick, 1-64 Level Adjustable Speed Control, Precise Positioning, and Highly Responsive Operation.
    Display Screen 5'' LED HD Display
    Communication Distance Depend on network cable
    Control Camera Quantity No limited (single screen display)
    Image Switching By Number or By Mouse Click
    Other Zero Configuration: Keyboard is automatically detected and assigned an IP address.
    OSD Menu English/Chinese
    Power Supply DC12V/2000MA
    Operating Temperature -20℃～[$add]55℃
    Operating Humidity ≤90% Non Condensing
    Product size 260mm*160mm*48mm
