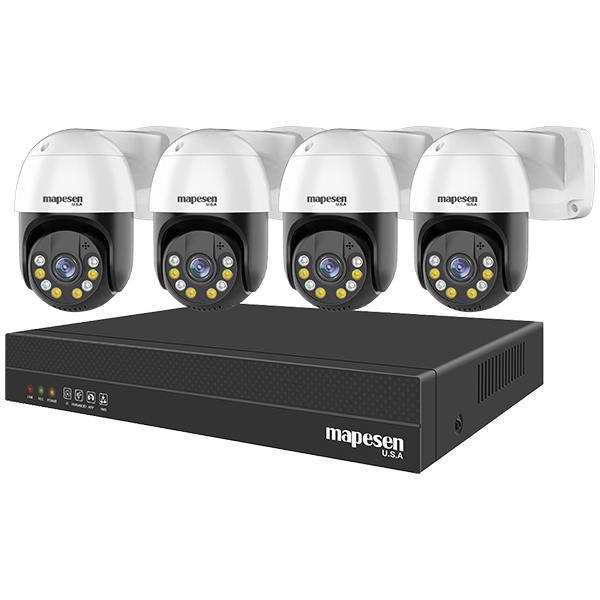

4CH B15A NVR KIT Series

4CH 3MP 5MP 4K AI Analysis POE Camera Kit

Smart Hybrid Light · Human Detection · Two-Way Audio · ONVIF · DWDR · 3D DNR · IP65 Waterproof · Plug & Play · Support 1 HDD(16TB)
    Products
    · S265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.
    · Pan 0°~355°,Tilt 0°-90°,F1.6/4mm Fixed Lens.
    · Smart Hybrid Light (Able to set Intelligent Mode/Infrared Mode/Full Color Mode by NVR or APP),IR Distance 25～30m,Full Color Distance 20～25m.
    · AI Humanoid Detection/Tracking & Motion Detection Alarm,Support Alarm Detection Area Setting,Alarm Linkage Voice Broadcast with Customized Contents.
    · Two-way Audio, NVR support 3.5mm Audio Input and Output,can Connect External Active Audio Equipment to Support PA System.
    · Able to Select Intelligent Analysis Video Playback.
    · Suppport APP Remote Viewing and Playback,APP can be Shared with 32 Users,PC Client Remote Viewing.
    · Max 1PC 16TB HDD Storage, DC12V / POE(IEEE.802.3af),HMTL5 Plug-in Free.
    · AGC,DWDR,3D DNR, BLC,4KV Lighting Protection,Plastic PTZ Dome.
    Model NVR204PB15AQ401LFA2
    4CH POE NVR
    Operating System Embedded LINUX
    Video & Audio
    Incoming Bandwidth 80Mbps
    IPC Input 8CH*4K/5MP/3MP/2MP/960P/720P
    Video Compression Smart H.265/H.265 /H.264
    Audio Decoding G.711A/G.711U
    Preview 4K/5MP/4MP/3MP/1080P/960P/720P
    Multi-screen Preview Multi-screen Split 1/2/4 screen real-time preview
    Split Screen Decoding 1(4K),4(4*1080P)
    Other Function
    Human Detection Support
    Motion Detection Support
    Buzzer Support buzzer alarm
    PA System Support
    Alarm Push Alarm Capture, send alarm information by email
    Online Upgrade Supports online NVR upgrade
    IPC Upgrade Support (specified model IPC)
    Other Support Channel Tour Round GroupingRTMP push
    Recording & Playback
    Recording Mode Timing recording, Alarm recording, timing and alarm recording
    Playback NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback
    Playback Mode Regular payback, event playback
    Storage & Backup
    Video Storage HDD
    Backup Mode USB device, mobile hard disk
    Network
    Network Protocol TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc.
    POE Port 4CH, Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at)
    APP Supports iPhone, Android
    PC Support
    Login HTML5 remote login operation
    User Management Maximum support 32 local user
    Interface
    Network Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
    USB Interface 2pcs USB 2.0
    Video Output VGA
    HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768
    Audio I/O Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface
    Alarm I/O No
    SATA 1 SATA, maximum support 16TB hard disk
    RS-485 No
    HDMI 1PC
    General
    Power Supply DC 52V 1.25A
    Power Consumption ≤65W
    Working Environment -10℃- [$add]55℃
    Working Humidity 10%—90%, Atm:86kpa—106kpa
    Camera Plastic Speed Dome*4PCS
    Image Sensor 1/2.9" low illumination CMOS sensor
    Max. Image Resolution 4MP(2560*1440)@25fps
    Frame Rate Main Stream: 4MP(2560*1440)@25fpsSub-Stream: D1(720*576),VGA(640*480),Q720P(640*360),864*480
    Video Compression S265/H.265/H.264
    Video Bit Rate CBR/VBR
    Image Settings Brightness,contrast,saturation,sharpness,chroma adjustable
    Audio Compression G.711A/U
    Two-way Audio Built-in microphone and speaker, support two-way audio
    Light Distance 25m
    IR LEDs 8pcs hybrid-light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/ Full Color
    Lens Fixed lens 3.6mm @F1.6
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    WDR Digital WDR
    White Balance Support
    Gain Control Support
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Noise Reduction 3D NR (Off/Low/Middle-high/High)
    Exposure Control HLC/BLC, Shutter Priority/Gain Priority
    Alarm Motion Detection Alarm, AI Human Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask Alarm Support 1 area
    Privacy Mask Support 4 area
    Human Detection It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    Web Access Support HTML5 remote login operation(Free plug-in)
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Power Supply DC 12V/POE
    Type Plastic Speed Dome Camera
    Power Consumption Max 6W
    Working Humidity 10%-95% RH(Non-condensing)
    Working Temperature -10°C to [$add]50°C
    Package
    4CH POE NVR *1PC
    4MP Smart Hybrid Light Plastic Speed Dome POE IP Camera * 4PCS
    52V 1.25A Power Adaptor * 1PC
    1M Network Cable * 1PC
    20M Network Cable * 4PCS
    Model NVR204PB15AQ501LFA2
    4CH POE NVR
    Operating System Embedded LINUX
    Video & Audio
    Incoming Bandwidth 80Mbps
    IPC Input 8CH*4K/5MP/3MP/2MP/960P/720P
    Video Compression Smart H.265/H.265 /H.264
    Audio Decoding G.711A/G.711U
    Preview 4K/5MP/4MP/3MP/1080P/960P/720P
    Multi-screen Preview Multi-screen Split 1/2/4 screen real-time preview
    Split Screen Decoding 1(4K),4(4*1080P)
    Other Function
    Human Detection Support
    Motion Detection Support
    Buzzer Support buzzer alarm
    PA System Support
    Alarm Push Alarm Capture, send alarm information by email
    Online Upgrade Supports online NVR upgrade
    IPC Upgrade Support (specified model IPC)
    Other Support Channel Tour Round GroupingRTMP push
    Recording & Playback
    Recording Mode Timing recording, Alarm recording, timing and alarm recording
    Playback NVR synchronous playback 4CH (1*4K); PC client support maximum 4CH remote video playback
    Playback Mode Regular payback, event playback
    Storage & Backup
    Video Storage HDD
    Backup Mode USB device, mobile hard disk
    Network
    Network Protocol TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,SMTP,GB28181 etc.
    POE Port 4CH, Single port max 15.4W(IEEE802.3af),Single port max 30W(IEEE802.3at)
    APP Supports iPhone, Android
    PC Support
    Login HTML5 remote login operation
    User Management Maximum support 32 local user
    Interface
    Network Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
    USB Interface 2pcs USB 2.0
    Video Output VGA
    HDMI:1CH 3840*2160,1920×1080,1440x900,1280×1024,1280×800,1024×768
    Audio I/O Support HDMI audio output, support 2PIN extended audio input interface and 3PIN extended audio output interface
    Alarm I/O No
    SATA 1 SATA, maximum support 16TB hard disk
    RS-485 No
    HDMI 1PC
    General
    Power Supply DC 52V 1.25A
    Power Consumption ≤65W
    Working Environment -10℃- [$add]55℃
    Working Humidity 10%—90%, Atm:86kpa—106kpa
    Camera Plastic Speed Dome*4PCS
    Image Sensor 1/2.7" low illumination CMOS sensor
    Max. Image Resolution 5MP(2880*1620)@20fps
    Frame Rate Main Stream: 5MP(2880*1620)@20fps,4MP(2560x1440)@25fps,3MP(2304x1296)@25fps,2MP 1920x1080@25fpsSub-Stream: D1(720*576),VGA(640*480),Q720P(640*360),864*480
    Video Compression S265/H.265/H.264
    Video Bit Rate CBR/VBR
    Image Settings Brightness,contrast,saturation,sharpness,chroma adjustable
    Audio Compression G.711A/U
    Two-way Audio Built-in microphone and speaker, support two-way audio
    Light Distance 25m
    IR LEDs 8pcs hybrid-light LEDs
    Day & Night Mode Hybrid Light Mode/ Infrared Mode/ Full Color
    Lens Fixed lens 3.6mm @F1.6
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    WDR Digital WDR
    White Balance Support
    Gain Control Support
    Mirror Off/horizontal mirror/vertical mirror/180° flip
    Noise Reduction 3D NR (Off/Low/Middle-high/High)
    Exposure Control HLC/BLC, Shutter Priority/Gain Priority
    Alarm Motion Detection Alarm, AI Human Detection and Tracking Alarm
    Linkage Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
    Motion Detection Set detection area,can set multi-level sensitivity
    Privacy Mask Alarm Support 1 area
    Privacy Mask Support 4 area
    Human Detection It can detect target ≤5-10 persons at the same timeHumanoid pixel ≥40X40Detection Ratio ≥99%(meet above requirement)Capture Corresponding Speed ≤1sSupport specified area detection, default full screenError detection rate 2% or lessMaximum detection frame rate is 5fps /s
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    Web Access Support HTML5 remote login operation(Free plug-in)
    Security Mode Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification
    Power Supply DC 12V/POE
    Type Plastic Speed Dome Camera
    Power Consumption Max 6W
    Working Humidity 10%-95% RH(Non-condensing)
    Working Temperature -10°C to [$add]50°C
    Package
    4CH POE NVR *1PC
    5MP Smart Hybrid Light Plastic Speed Dome POE IP Camera * 4PCS
    52V 1.25A Power Adaptor * 1PC
    1M Network Cable * 1PC
    20M Network Cable * 4PCS
    ·  4PCS 1.5" POE PTZ Camera
    ·  1PC 4CH POE NVR
    ·  1PC 52V 1.25A Power Adaptor
    ·  1 USB Mouse
    ·  1PC 1M Network Cable+2PCS 15m Network Cable+2PCS 25m Network Cable
