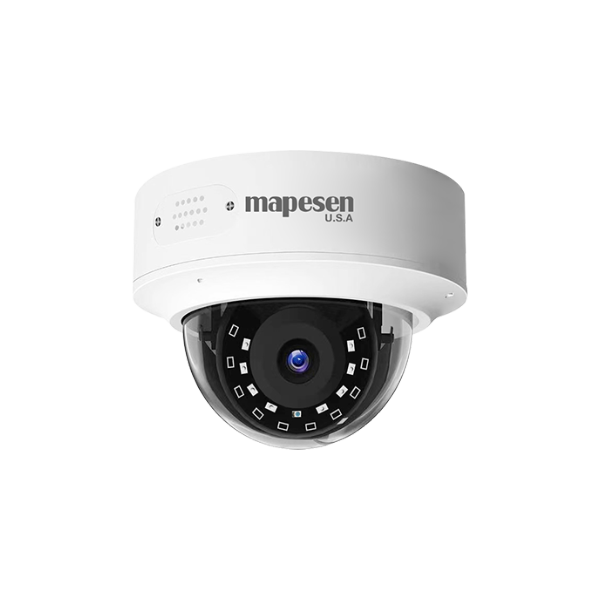

F5D Auto-Focus Network Dome Camera

 Model Number

F5DQ41WMA2-P

Camera

Image Sensor

1/2.8"SONY color CMOS

Min. Illumination

Color: 0.01Lux @F1.2, B/W: 0Lux with IR on

Lens

Motorized 2.8-12mm lens , 4X optical zoom

Shutter Time

Auto(1/5 - 1/100000)

IR Distance

30m

IR LEDs

12pcs IR LEDs

White Balance

Auto / Manual

AGC

Support

WDR

128db REAL WDR

DNR

2D/3D DNR

BLC

Support

HLC

Support

Video

Max. Image Resolution

4MP@25FPS

Video Compression

S265[$add]/H265/H264

Frame Rate

Main code stream: 5MP/4MP/3MP/2MP@25fps/30fps

Auxiliary stream: D1/VGA@25fps/30fps

Video Bit Rate

512Kbps-6144Kbps support self-adjustable as needed

Image Settings

Brightness,contrast,saturation,exposure,upside down,mirror adjustable

Bit Superposition

Support OSD name,time and date information superposition

Web Access

Internet explorer 6.0 and above (Web Server embedded in device) browser

Audio

Audio Input

Support, built-in microphones

Audio Output

Support, built-in speaker

Audio Compression

G.711A/G.711U/64k

Network

Network Interface

1*RJ45 10M/100M Ethernet Port

Networking Protocol

TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,NTP,PPPOE

ONVIF

ONVIF2.6

APP

IOS, Android

PC

Support

System

Alarm

Motion detection alarm

Storage

Optional

Motion Detection

22*18 windows motion detection areas can be setting

Area Occlusion Alarm

Support

Video Mask

Support

General

Language Support

CHN(S)/CHN(T)/ENG

POE

IEEE802.3af

Power Supply

DC12V±10% /POE

Power Consumption

Max 6W

Lightning Protection

2KV

Housing

Vandalproof Dome

Weather Proof

IP67

Working Temperature

-30 °C to 85 °C

Working Humidity

10%-95% (Non-condensing)
