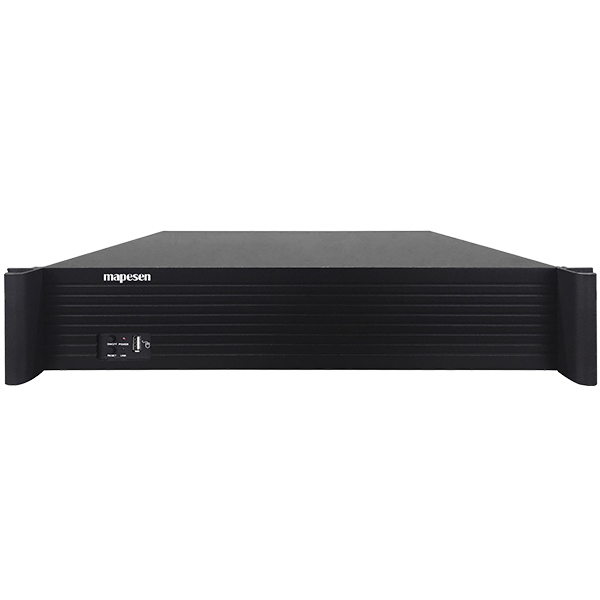

VMS-9-1024

1024CH All-In-One VMS Platform Manage System

Up to 1024-channel access (aggregate channels from connected NVRs) · H.265 / H.264 / H.265+ Triple-Stream Decoding · Single-Screen 8K Display Output · 4 HDMI
    Products
    · Support for connecting up to 1024 channels (total number of channels including connected DVRs).
    · Mode 1: 1 HDMI output (12MP/D1 + 128 preview + 16-channel playback).
    · Mode 2: 2 HDMI outputs (12MP/D1 + 2 screens with 100+100 preview + 16-channel playback).
    · Mode 3: 4 HDMI outputs (8MP/D1 + 4 screens with 49+49+49+49 preview + 16-channel playback).
    · H265, H264, H265+ triple-stream decoding.
    · Supports single-screen 8K display output.
    · Supports dual-screen HDMI heterogeneous display output(1*8K + 1*4K).
    · Supports quad-screen HDMI heterogeneous display output(3*4K + 1*1080P).
    · Supports 16-channel local recording and playback.
    · Supports synchronous recording and backup recording in MP4 format.

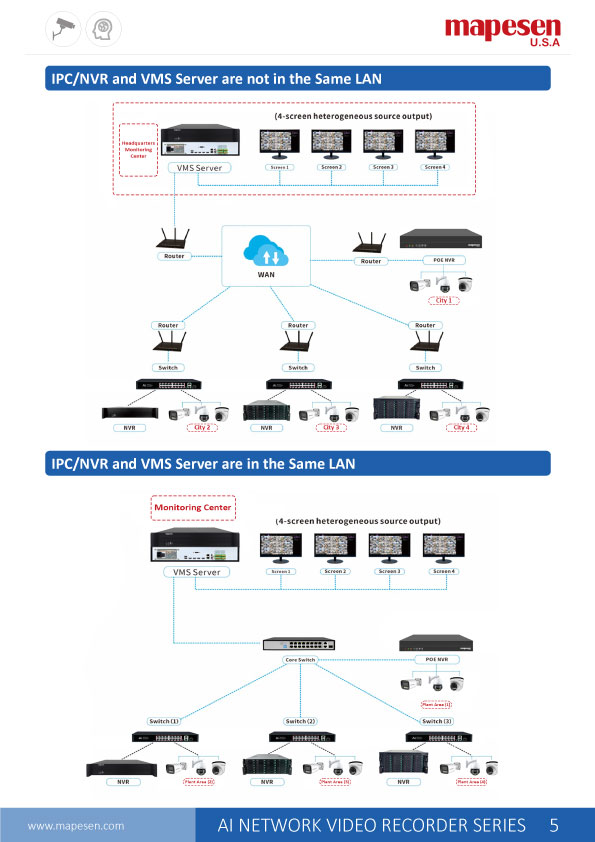

    · Supports NVR remote playback.
    · Supports real-time alarm information display and alarm statistics.
    · Supports alarm information query.
    · Supports electronic zoom of preview and playback images.
    · Supports NTP and other functions.
    · Supports channel tour grouping and custom screen splicing display.
    · Supports up to 4-channel 4K video synchronous playback and up to 16-channel synchronous playback.
    · Fast boot-up for a smooth experience.
    · New UI interface with smooth operation.
    · New optimization with excellent compatibility with market hard drives.
    · Supports selection of recording stream mode.
    · Optimized access bandwidth, up to 800M.
    · Support 16CH alarm In and 8CH out.
    Model VMS-9-1024
    Function Characteristics
    Support connect 1024 CH (Sum of the total number of access video recorders)NVR.
    Support Max 4ch 4K synchronized video recording playback & Max 16ch synchronised playback.
    Support synchronized video recording, backup video record MP4 format.
    Support NVR remote playback.
    Support real-time alarm information display, alarm statistics.
    Support alarm information query.
    Support electronic zoom of preview and playback images .
    Support NTP etc Function.
    Support Channel Patrol Grouping, customized screen splicing display.
    Quick Boot, Enjoy Seamless Experience.
    Brand new UI interface, smooth operation.
    Newly optimized, with excellent compatibility with hard drives on the market.
    Supports selection of recording bitrate mode.
    Optimized access bandwidth up to 800M.
    Channel connection protocol SLINK (private protocol)
    Video & Audio
    Bandwidth 800Mbps
    NVR Connection Support connect 1024CH (Sum of the total number of access video recorders)NVR
    Video Resolution 12MP/4K/1080P/720P/D1
    Video Compression H.265[$add]/H.265/H.264
    Audio Compression G.711A/G.711U
    Multi-Screen Display Support Single screen 8K display output.Support Two screen HDMI different resource display output (1*8K[$add]1*4K).Support four screen HDMI different resource display output (3*4K[$add]1*1080P).
    Single-Screen Mode(Split-screen/Decoding) 1(8K),2(2*12MP),4(4*12M),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*4K),10(2*4K[$add]8*3MP),16(16*5MP),25(25*3MP),36(36*D1),49(49*D1),64(64*D1),128(128*D1)
    Dual-Screen Mode(Split-screen/Decoding) 1(8K),2(2*12MP),4(4*4K),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*3MP),10(2*4K[$add]8*1080P),16(16*1080P),25(25*D1),36(36*D1),49(49*D1),64(64*D1),81(81*D1) ,100(81*D1)
    Four-Screen Mode(Split-screen/Decoding) 1(12MP),2(2*4K),4(4*5MP),6(4K[$add]5*1080P),8(5MP[$add]7*1080P),9(9*1080P),10(10*1080P),16(16*D1),25(25*D1),36(36*D1),49(49*D1)
    Recording & Playback
    Recording Mode Timer/alarm recording
    Playback Max 16ch simultaneous playback,supports local and remote playback, the decoding capability is the same as the preview decoding capability in the current mode.
    Playback Mode Routine playback, event playback
    Backup Mode USB Device/Network
    Display Mode 1)Mode 1: 1*HDMI output (12MP/D1[$add]128 preview[$add]16ch playback)
    2) Mode 2: 2*HDMI output (12MP/D1[$add]2 screen 100[$add]100preview[$add]16ch playback)
    3) Mode 3: 4*HDMI output (8MP/D1[$add]4 screen 49[$add]49[$add]49[$add]49 preview[$add]16ch playback)
    Storage
    SATA 9*SATA HDD
    ESATA 1 ESATA Expansion port
    Capacity Max 16TB HDD
    Storage Path Local hard disk,network HDD
    Backup method USB portable HDD,Memory Flash
    Interface
    Network Interface 2pcs RJ 45 1000M Port
    USB Interface 3pcs USB 2.0
    Audio I/O 1/1 RCA Port
    RS-485 1 pc RS-485 port
    HDMI 4 pcs
    General
    Installation Desktop Installation
    Power Supply AC 110V-240V 50-60HZ
    Consumption ≤250W
    Working Conditions Temperature: -10℃∼55℃; Humidity: 10%∼90%
    Dimensions Equipment: 440X430X90mm
