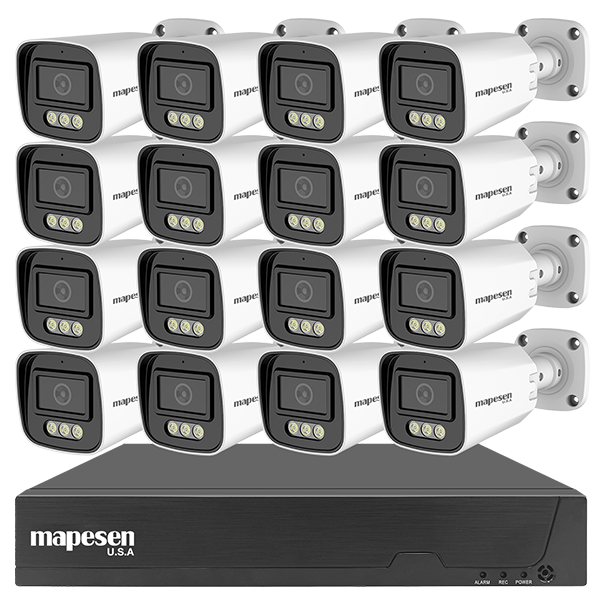

16CH L2K TUYA NVR KIT Series

16CH 5MP 8MP 4K Smart TUYA POE Camera Kit

H.265 · Tuya Smart APP · H.265/H.264 decoding · 16CH POE · Hybrid Light · Two-Way Audio · AI Human Detection · 8CH Synchronous Playback · 2*10TB HDD · ONVIF & Cross-Segement · Wide Compatibility & Plug-and-Play · Stable & Reliable Performance
    Products
    · 16-channel 5MP 8MP 4K Ultra HD POE NVR kit with 16 hybrid light bullet cameras.
    · H.265 video compression delivers clear video and saves storage and bandwidth.
    · Built-in 16-port POE for plug-and-play setup and simple cable installation.
    · Hybrid light night vision: 40m IR and 30m full-color night vision.
    · 5MP 8MP 4K high-sensitivity low-illumination CMOS sensor for clear day and night imaging.
    · Human detection and motion detection with adjustable sensitivity.
    · 8-channel synchronous playback and multi-mode video search function.
    · Supports 2*10TB SATA hard disk with S.M.A.R.T data protection.
    · Tuya Smart APP for remote monitoring on iOS and Android devices.
    · Built-in two-way audio for real-time communication.
    · Professional image processing: DWDR, 3D DNR, BLC, HLC, anti-flicker.
    · HDMI and VGA dual video output for clear display.
    · ONVIF supported, compatible with cross-segment IP cameras.
    · Metal bullet camera housing, suitable for indoor and outdoor use.
    · Complete surveillance kit with full accessories, ready to install.
    Model NVR316PL2KTY51LFA2
    4CH POE NVR
    Operating System Embedded LINUX
    Video & Audio
    Incoming Bandwidth 160Mbps
    IPC Input 16CH*4K/5MP/3MP/2MP/960P/720P
    IP Channel Resolution Main-Stream: up to 3840×2160Sub-Stream: D1
    Video Decoding H.265 /H.264
    Audio Decoding G.711A, G711U, G726
    Decoding Capability AI off: 2CH 4K@25FPS / 8CH 1080P@25FPSAI on: 2CH 4K@25FPS (AI Capability: 16CH D1@25FPS)
    Recording & Playback
    Recording mode Timing recording or alarm recording
    Playback 8CH synchronous playback
    Playback Mode Search by time, calendar, event, channel
    Backup Mode USB device/USB mobile hard disk
    Intelligent Analytics
    Intelligent Mode Intelligent Mode
    Intelligent Performance Intelligent Performance
    Other
    Two-Way Audio Between client and IPC
    Motion Detection Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest)
    Snap Mode JPEG
    S.M.A.R.T Technology Support skipping bad track of hard disk to reduce data loss
    Storage
    SATA 2*SATA HDD
    Capacity Up to 10 TB capacity for each HDD
    POE
    Standard IEEE 802.3AF
    Interface 16CH RJ-45 10/100/1000 Mbps self-adaptive
    Power ≤100W (Each≤13W)
    Network
    Network Protocols TCP/IP,DHCP,IPv4,DNS,DDNS,NTP,RTSP,SMTP, UPnP™,HTTP,etc.
    ONVIF Support “Cross-Segement Add” to add different netword segement ip camera
    APP iPhone, Android
    PC Support
    Interface
    Network Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
    USB Interface 2pcs USB2.0 Interfaces
    Video Output VGA: /
    POE Power HDMI:1CH, 3840×2160, 1920×1080, 1.4a
    Audio Output Using the HDMI Output
    Alarm N/A
    General
    Installation Desktop Installation
    Power Supply DC52V 4.62A
    Consumption ≤ 7W(without HDD)
    Working Temperature -10℃- [$add]55℃
    Working Humidity 10%∼90%
    Camera Metal Bullet*16PCS
    Image Sensor 1/3" 5MP low illumination CMOS sensor
    Max. Image Resolution 5MP(2880*1616)@25fps
    Frame Rate Main stream: 5MP (2880x1616)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Compression H.265/H.264
    Video Bit Rate 128Kbps-8192bps continuous adjustable
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 5-line character overlay.
    Audio Compression G.711A/G.711U
    Two-way Audio Support
    Min. Illumination Color: 0.1 Lux @ (F1.6, AGC ON),B/W: 0.01 Lux with IR
    IR LEDs 3pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/Infrared Mode/Full Color Mode
    Light Distance Infrared distance 40m, Full Color distance 30m
    Lens [email protected]
    WDR Digital WDR,>80db
    S/N ≥50db (AGC OFF)
    DNR 2D/3D DNR
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    Detection AI human detection, motion detection
    Alarm Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Mobile Support IOS, Android
    Power Supply DC 12V/POE
    Type Metal Bullet Camera
    Power Consumption Max 6W
    Working Humidity 10%-95% (Non-condensing)
    Working Temperature -10°C to [$add]50°C
    Package
    16CH TUYA POE NVR *1PC
    5MP Smart TUYA Hybrid Light Metal Bullet POE IP Camera * 16PCS
    52V 4.62A Power Adaptor * 1PC
    1M Network Cable * 1PC
    20M Network Cable * 16PCS
    Model NVR316PL2KTY80LFA2
    4CH POE NVR
    Operating System Embedded LINUX
    Video & Audio
    Incoming Bandwidth 160Mbps
    IPC Input 16CH*4K/5MP/3MP/2MP/960P/720P
    IP Channel Resolution Main-Stream: up to 3840×2160Sub-Stream: D1
    Video Decoding H.265 /H.264
    Audio Decoding G.711A, G711U, G726
    Decoding Capability AI off: 2CH 4K@25FPS / 8CH 1080P@25FPSAI on: 2CH 4K@25FPS (AI Capability: 16CH D1@25FPS)
    Recording & Playback
    Recording mode Timing recording or alarm recording
    Playback 8CH synchronous playback
    Playback Mode Search by time, calendar, event, channel
    Backup Mode USB device/USB mobile hard disk
    Intelligent Analytics
    Intelligent Mode Intelligent Mode
    Intelligent Performance Intelligent Performance
    Other
    Two-Way Audio Between client and IPC
    Motion Detection Zones: 396(22*18), Sensitivity: 1~6 (level 6 is highest)
    Snap Mode JPEG
    S.M.A.R.T Technology Support skipping bad track of hard disk to reduce data loss
    Storage
    SATA 2*SATA HDD
    Capacity Up to 10 TB capacity for each HDD
    POE
    Standard IEEE 802.3AF
    Interface 16CH RJ-45 10/100/1000 Mbps self-adaptive
    Power ≤100W (Each≤13W)
    Network
    Network Protocols TCP/IP,DHCP,IPv4,DNS,DDNS,NTP,RTSP,SMTP, UPnP™,HTTP,etc.
    ONVIF Support “Cross-Segement Add” to add different netword segement ip camera
    APP iPhone, Android
    PC Support
    Interface
    Network Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
    USB Interface 2pcs USB2.0 Interfaces
    Video Output VGA: /
    POE Power HDMI:1CH, 3840×2160, 1920×1080, 1.4a
    Audio Output Using the HDMI Output
    Alarm N/A
    General
    Installation Desktop Installation
    Power Supply DC52V 4.62A
    Consumption ≤ 7W(without HDD)
    Working Temperature -10℃- [$add]55℃
    Working Humidity 10%∼90%
    Camera Metal Bullet*16PCS
    Image Sensor 1/3" 8MP low illumination CMOS sensor
    Max. Image Resolution 8MP(3840x2160)@20fps
    Frame Rate Main stream: 8MP(3840x2160)@20fps,5MP (2880x1664)@25fps,4MP(2560x1440) @25fps,3MP(2304x1296) @25fps,2MP(1920x1080) @25fps, 720P(1280x720) @25fpsSub-stream: 704x576, 800x448, 640x480, 640x360, 352x288
    Video Compression H.265/H.264
    Video Bit Rate 128Kbps-8192bps continuous adjustable
    Character Overlay (OSD) Support channel name, date/time, bitrate, resolution, and 5-line character overlay.
    Audio Compression G.711A/G.711U
    Two-way Audio Support
    Min. Illumination Color: 0.1 Lux @ (F1.6, AGC ON),B/W: 0.01 Lux with IR
    IR LEDs 3pcs Hybrid Light LEDs
    Day & Night Mode Hybrid Light Mode/Infrared Mode/Full Color Mode
    Light Distance Infrared distance 40m, Full Color distance 30m
    Lens [email protected]
    WDR Digital WDR,>80db
    S/N ≥50db (AGC OFF)
    DNR 2D/3D DNR
    Image Settings Basic: Brightness,contrast,saturation,sharpness,mirror,flip
    Advanced: Anti-flicker,BLC,HLC,scene,exposure time,AGC,white balance
    Detection AI human detection, motion detection
    Alarm Linkage Alarm triggering actions such as FTP upload, send message, audio alerts, email notifications, and light activation.
    Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    Networking Protocol ONVIF,P2P,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP,DNS,GB28281
    Web Access Supports IE6.0 and above browsers, Free plug-in
    Mobile Support IOS, Android
    Power Supply DC 12V/POE
    Type Metal Bullet Camera
    Power Consumption Max 6W
    Working Humidity 10%-95% (Non-condensing)
    Working Temperature -10°C to [$add]50°C
    Package
    16CH TUYA POE NVR *1PC
    8MP Smart TUYA Hybrid Light Metal Bullet POE IP Camera * 16PCS
    52V 4.62A Power Adaptor * 1PC
    1M Network Cable * 1PC
    20M Network Cable * 16PCS
    · 16PCS POE Metal Bullet Camera,H.265, 30-35m IR Distance, 2 Way Audio
       (Auto-cascade,Plug and Play,No Need Pairing)
    · 1PC 16CH POE NVR  (max 10TB HDD,Auto-cascade)
    · 1PC 52V 4.65A Power Adaptor
    · 1 USB Mouse
    · 1PC 1M Network Cable+16PCS 20m Network Cable
    · Intallation accessories
    · AI Humanoid Detection,Cloud Storage,TUYA APP
