YH6108L2KI300L-WA2

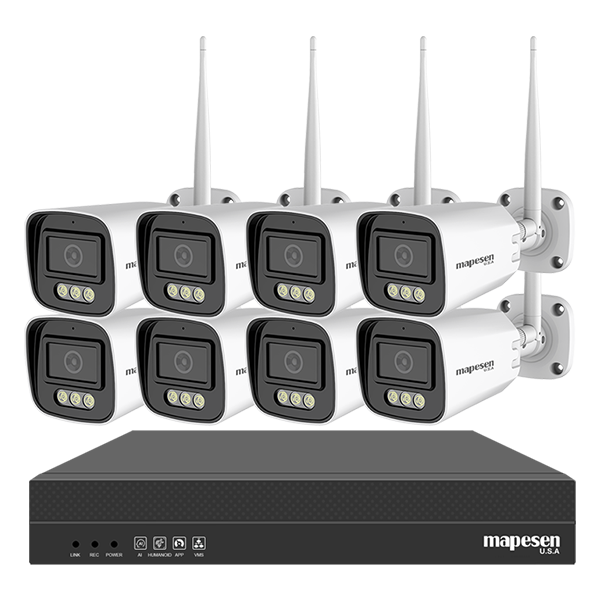

8CH 3.0MP Tuya WiFi Wireless Security Camera System Combo Kit
H.265 · Human Detection · Hybrid Night Vision 40m IR 30m Color · Two-Way Audio
· IP66 · 4CH Playback · HDD/Cloud Storage · Plug & Play · Tuya App
8CH 3.0MP Tuya WiFi Wireless Security Camera System Combo Kit
| Model | YH6108L2KI300L-WA2 | |
| System | ||
| Operating System | Embedded LINUX operating system | |
| Preview | 1/4/9 screen | |
| Video & Audio | ||
| Encoding Format | H.265 Main Profile Lever 4.2 | |
| Video Input Capability | 9CH 3MP | |
| Video Output Capability | 4K@45fps | |
| Audio Compression | G.711A | |
| Voice Intercom | NO | |
| Smart Function | ||
| Human Detection | Support | |
| Motion Detection | Support | |
| Record & Playback | ||
| Record Mode | Manual, Motion Detection, Timing, Alarm | |
| Local Playback | 4CH synchronous playback | |
| Search Mode | Search by time, calendar, event, channel | |
| Storage & Backup | ||
| Video Storage | HDD, Network | |
| Cloud Storage | Support | |
| Backup Mode | USB hard disk, HDD | |
| Network | ||
| Network Protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,P2P | |
| WIFI Mode | Wi-WF6 802.11ax | |
| Antenna | 2pcs 5dB antennas | |
| Transmission Distance | Max unobstructed cascade transmission/reception range: 1000 meters. Actual operational distance is environmentally dependent. | |
| APP | Android/IOS (TUYA) | |
| External Interface | ||
| HDMI Output | 1CH | |
| VGA Output | 1CH | |
| Audio Input | No | |
| Audio Output | 1CH HDMI | |
| Network Interface | 1CH RJ45 10M/100M self-adaption | |
| WIFI Antenna | 2 | |
| USB | 2* USB 2.0ports | |
| HDD | 1*SATA port (Max 6TB/per) | |
| Alarm I/O | No | |
| General | ||
| GUI Lanuage | Chinese/English/Japanese/French/Spanish/Russian | |
| Power Supply | DC12V 2A | |
| Power Consumption | 3W (Without HDD) | |
| Working Temperature | -10℃ - [$add]55℃ | |
| Working Humidity | Humidity:10%-90% | |
| Camera | Metal Bullet*8PCS | |
| Image Sensor | 1/3” 3.0MP progressive scan CMOS | |
| Min. Illumination | Color: 0.05Lux @F1.6, B/W: 0.01Lux @F1.6,0Lux with IR on | |
| Lens | 3.6mm @F1.6 fixed lens | |
| Electronic Shutter | 1/5-1/2000s,supports slow shutter | |
| Light Distance | IR 40m, Full Color 30m | |
| IR Board | 3pcs Hybrid Light LEDS | |
| White Balance | Auto, Indoor, Outdoor, Sodium Lamp, Manual | |
| AGC | Auto/Manual | |
| WDR | Digital WDR | |
| DNR | 3D DNR | |
| SNR | ≥50dB | |
| AI Intelligent | Human Detection | |
| Motion Detection | Support | |
| Privacy Zone | Support | |
| Video & Audio | ||
| Max. Image Resolution | 2304x1296@20fps | |
| Frame Rate | Main stream: 2304x1296Sub-stream:800x448MJPEG:800x448 | |
| Video Compression | H.265/H.264/M-JPEG | |
| Video Bit Rate | VBR, bit rate range 64K~1.5M | |
| Audio Input | Support, built-in microphone | |
| Audio Output | Support, built-in speaker, voice intercom | |
| Audio Compression | G.711A | |
| Network | ||
| Networking Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DNS | |
| WIFI frequency | 2.4G | |
| WIFI Transmission Distance | Guaranteed unobstructed cascade range: >1000 m. Typical wall penetration: >100 m. Actual range varies with environment. | |
| APP | Android/IOS (TUYA) | |
| General | ||
| Power Supply | DC 12V1A | |
| Power Consumption | Max 4W | |
| Network Interface | No | |
| Weather Proof | IP66 | |
| Working Temperature | -30 °C to 50 °C | |
| Working Humidity | 10%-95% RH (Non-condensing) | |
| Package | ||
| 8CH WiFi NVR *1PC (with Mouse,12V 2A Power Adaptor) | ||
| 3.0MP Hybrid Light Metal Bullet WiFi Camera * 8PCS | ||
| 12V 1A Power Adaptor * 8PCS | ||
| 1M Network Cable * 1PC | ||
