T2F Pro Series

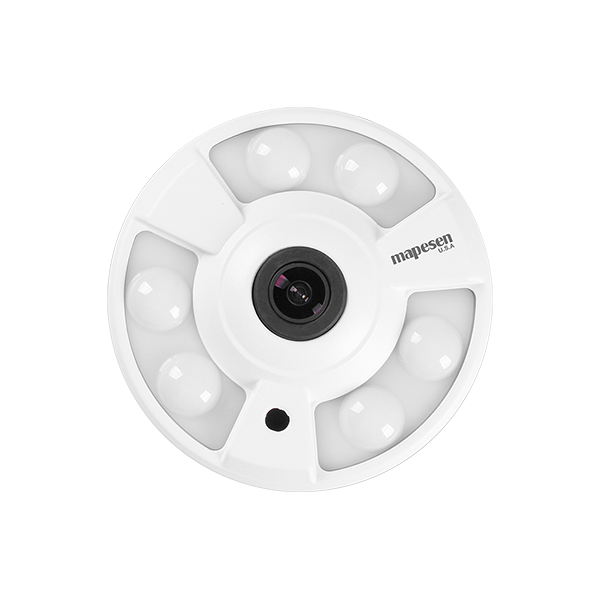

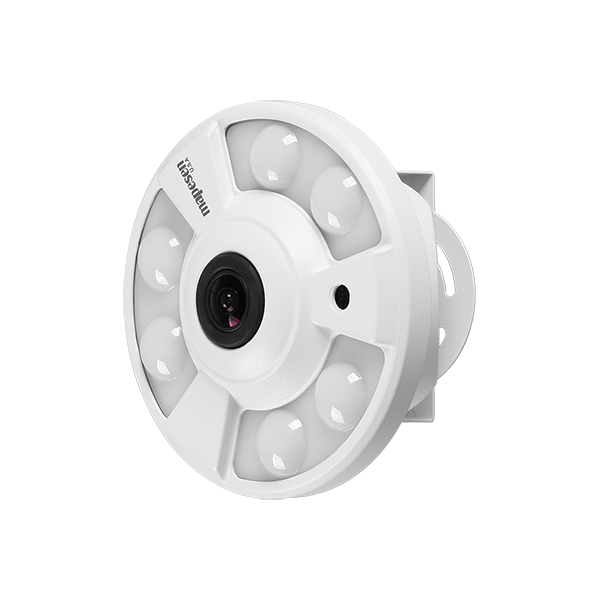

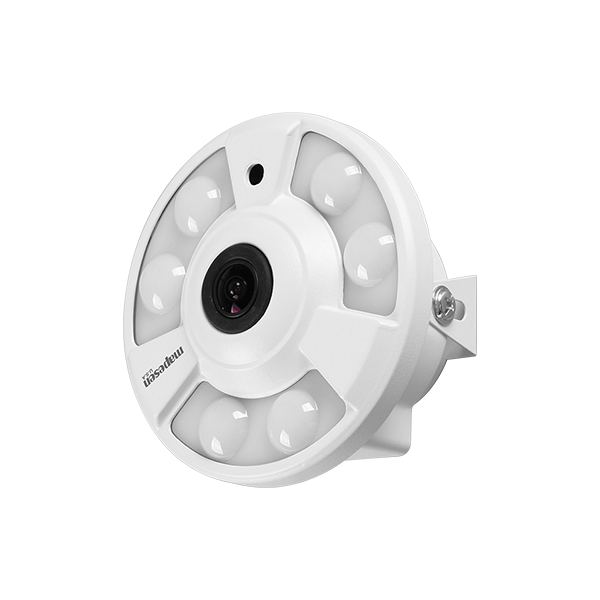

4MP/5MP Smart AI Full Color Panoramic POE Network Metal Dome Camera
Full Color Light · 180 Degree Fisheye Lens · Human Detection · Two-Way Audio· Max 512G On Board Storage · ONVIF · DWDR · 3D DNR · IP66 Waterproof
4MP/5MP Smart AI Full Color Panoramic POE Network Metal Dome Camera
| Model Number | T2FQ400LY-P |
| Camera | |
| Image Sensor | 1/2.8" low illumination CMOS sensor |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | Auto(1/5 - 1/100000) |
| Lens | |
| Lens Type | 1.8mm Fisheye Lens |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | Warm Light 25m |
| IR LEDs | 6pcs Warm LEDs |
| Day & Night Mode | Full Color |
| Video | |
| Max. Image Resolution | 4MP(2560x1440)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream:4MP(2560x1440)@25fps,3MP(2304x1296)@25fps,2MP(1920x1080)@25fpsSub Stream:D1(720x576),864x480,VGA((640x360),Q720P(640x360),CIF(352x288), 320x240 |
| Video Bit Rate | 16Kbps-8000Kbps support self-adjustable as needed |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma |
| White Balance | Auto / Manual |
| Gain Control | Low/Mid-Low/Mid/Mid-High/High |
| BLC | Support |
| HLC | Support |
| WDR | Digital WDR (Off/Low/Middle/High) |
| Noise Reduction | 3D NR (Off/Low/Middle/High) |
| Defog | Off/Low/Middle/High |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay(OSD) | Support time OSD/Title OSD, multi-line OSD (two lines) Main stream font support 12-60pt,sub stream font support 12-36pt |
| Audio | |
| Audio Input | No |
| Audio Output | No |
| Network | |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP,RTMP |
| Connection Protocol | ONVIF,Slink,GB28181(option) |
| APP | Through the NVR |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area,can set multi-level sensitivity |
| Privacy Mask Alarm | Support 1 area |
| Privacy Mask | Support 4 area |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | No |
| Alarm | No |
| RS-485 | No |
| Reset | No |
| General | |
| POE | IEEE802.3af |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 6W |
| Surge Protection | 6KV |
| Housing | Metal Dome |
| Weather Proof | IP65 |
| Working Temperature | -15 °C to 50 °C |
| Working Humidity | 0%-90% (Non-condensing) |
| Model Number | T2FQ500LY-P |
| Camera | |
| Image Sensor | 1/2.7" 5MP low illumination CMOS sensor |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | Auto(1/5 - 1/100000) |
| Lens | |
| Lens Type | 1.8mm Fisheye Lens |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | Warm Light 25m |
| IR LEDs | 6pcs Warm LEDs |
| Day & Night Mode | Full Color |
| Video | |
| Max. Image Resolution | 5MP(2880*1620)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP(2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x480)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps |
| Video Bit Rate | 1024Kbps-8000Kbps support self-adjustable as needed |
| Image Settings | Brightness,contrast,saturation,sharpness,chroma |
| White Balance | Auto / Manual |
| Gain Control | Support |
| BLC | Support |
| HLC | Support |
| WDR | Digital WDR |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) |
| Defog | Off/Low/Middle/High |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay (OSD) | Title, time and date overlay, multi-line, and color of characters optional |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711U/64Kbps |
| Network | |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP |
| Connection Protocol | Onvif,GB28181 |
| APP(P2P) | Through the NVR |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Preview Simultaneously Video Number | 4 |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | No |
| Alarm | No |
| RS-485 | No |
| General | |
| POE | IEEE802.3af |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 6W |
| Lightning Protection | 6KV |
| Housing | Metal Dome |
| Weather Proof | N/A |
| Working Temperature | -10 °C to 50 °C |
| Working Humidity | 10%-95% (Non-condensing) |
