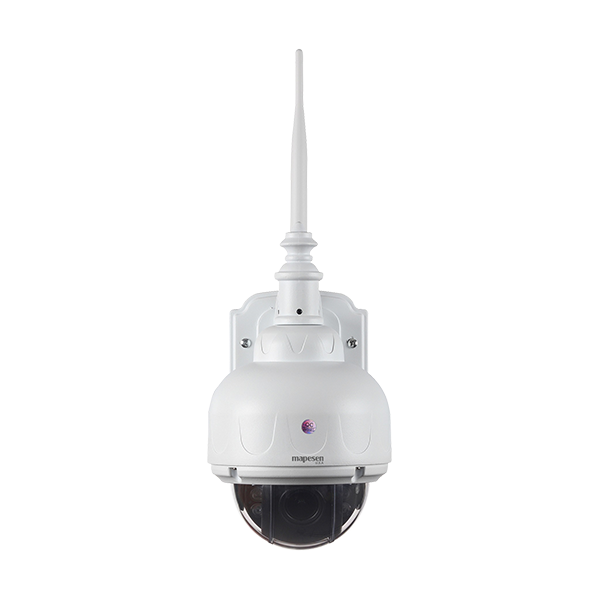

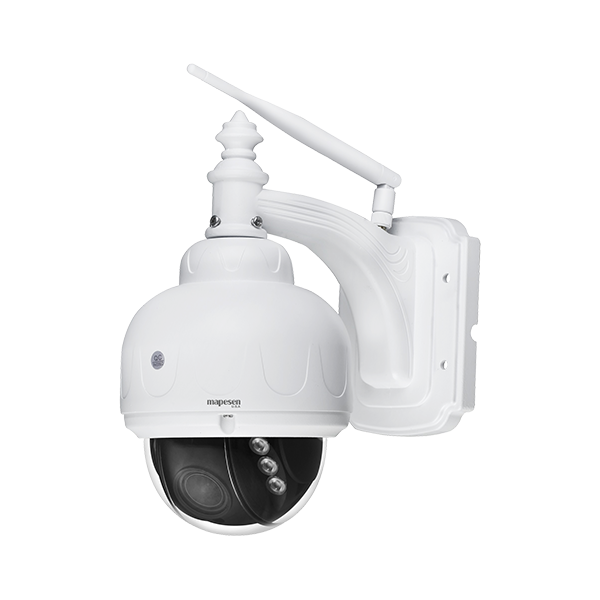

Wifi SD I TF Card Standalone IR PTZ Dome Camera B301 Series

WIFI PTZ Dome Camera

1.3MP/2MP/3MP/5MP,Wifi PTZ Dome H.264 / H.265 · Smart IR · 50M IR Distance DWDR · 3D DNR · Motion Detection Plug&Play onvif Compatibity ·IP66

    B301 Series Wifi SD I TF Card Standalone IR PTZ Dome Camera

    · Support WI-Fi;
    · 5X optical Zoom 2.7~13.5mm;
    · Support max 64GB SD card;
    · Microphone inside monitor voice,two-way audio;
    · Vertical 90 horizontal 355;
    · Plug and play 24hours monitor;
    · IP66;
    · 50m IR distance 6pcs leds;
    · Easy to install;
    · CMS and monile App management;
    · Extral optional for internal POE /  6~22mm lens and outside speaker

     Model Number

     MP-B301I133M-WTA2

    Camera

     Image Sensor

     1/3" color CMOS

    Min. Illumination

    Color: 0.1Lux @F1.2, B/W: 0.01Lux with IR on

     Lens

    Auto-Focus 2.7-13.5mm lens,5X Optical Zoom

     Shutter Time

    Auto

     IR Distance

    40-50m

    IR Board

     6pcs IR array leds

     White Balance

    Auto

     AGC

     Auto

     WDR

     Digital WDR

     DNR

     3D DNR

    BLC

    Auto

    HLC

    Auto

    Video

     Max. Image Resolution

    960P(1280x960)@25fps

     Frame Rate

    Main code stream:960P(1280x960)@25fps CBR/VBR adjustable

    Sub bit stream:Q720P(640x352),QQ720P(320x176)preset

     Video Compression

    Support H.264 Main Profile&H.264 Baseline

     Video Bit Rate

    32Kbps-6144bps support self-adjustable as needed,default 1024Kbps

     Image Settings

    Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable

     Bit Superposition

    Support OSD name,time and date information superposition

     Web Access

    Support IE,Google,Firefox Browser

    Pan&Tilt

    Pan Speed/Angle

    Pan Speed:10°-20°/S,Speed Adjustable;Pan Angle:0°-355°

    Tilt Speed/Angle

    Tilt Speed:8°-25°/S,Speed Adjustable;Pan Angle:0°-90°

    Audio

     Two-way Audio

     Built-in microphone and speaker

     Audio Compression

     G.711

    Network

     Network Interface

     1*RJ45 10M/100M Ethernet Port

     Networking Protocol

     TCP/IP, HTTP, TCP, ICMP,UDP,ARP,ICMP,SMTP,FTP,DHCP,DNS DDNS,NTP,UPNP,RTSP

     WIFI

     WiFi 802.11b/g/n

     ONVIF

     ONVIF2.4

     AP Hotspot

     Support

    System

    Alarm I/O

    Motion detection alarm

    Storage

    Max support 64GB SD card,timing video storage,motion detection video storage;

    Motion Detection

    4 windows motion detection areas can be setting(sensitivity setting 1-100)

    Video Mask

    4 windows can be built to mask your private area

    Action with Alarm

    The alarm pictures be sent to appoint mailbox,the pic and video be upload to FTP Server

    General

    Working Temperature

    -10 °C to 60 °C

    Working Humidity

    10%-95% (Non-condensing)

    Power Supply

    DC12V±10%

    Power Consumption

    Max 12W

    Housing

    Metal PTZ Dome

    Weather Proof

    IP66

    Language Support

    CHN(S)/CHN(T)/ENG/KOR/JPN

     Model Number

     MP-B301I216SM-WTA2

    Camera

     Image Sensor

     1/2.8" SONY color CMOS,Hisilicon

    Min. Illumination

    Color: 0.1Lux @F1.2, B/W: 0.01Lux with IR on

     Lens

    Auto-Focus 2.7-13.5mm lens,4X Optical Zoom

     Shutter Time

    Auto

     IR Distance

    40-50m

    Smart IR/Starlight

     Starlight full color or B/W optional set manually,6pcs IR array leds

     White Balance

    Auto

     AGC

     Auto

     WDR

     Digital WDR

     DNR

     3D DNR

    BLC

    Auto

    HLC

    Auto

    Video

     Max. Image Resolution

    1080P(1920x1080)@20fps

     Frame Rate

    Main code stream:1080P/720P@20fps

    Auxiliary stream:640x352/320x176

     Video Compression

    H.265/H.264

     Video Bit Rate

    32Kbps-6144bps support self-adjustable as needed,default 1024Kbps

     Image Settings

    Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable

     Bit Superposition

    Support OSD name,time and date information superposition

     Web Access

    Support IE,Google,Firefox Browser

    Pan&Tilt

    Pan Speed/Angle

    Pan Speed:10°-30/S,Speed Adjustable;Pan Angle:0°-355°

    Tilt Speed/Angle

    Tilt Speed:8°-25°/S,Speed Adjustable;Pan Angle:0°-90°

    Audio

     Two-way Audio

     Built-in microphone and speaker

     Audio Compression

     G.711

    Network

     Network Interface

     1*RJ45 10M/100M Ethernet Port

     Networking Protocol

     TCP/IP, HTTP, TCP, ICMP,UDP,ARP,ICMP,SMTP,FTP,DHCP,DNS DDNS,NTP,UPNP,RTSP

     WIFI

     WiFi 802.11b/g/n

     ONVIF

     ONVIF2.4

     AP Hotspot

     Support

    System

    Alarm I/O

    Motion detection alarm

    Storage

    Max support 64GB SD card,timing video storage,motion detection video storage;

    Motion Detection

    4 windows motion detection areas can be setting(sensitivity setting 1-100)

    Video Mask

    4 windows can be built to mask your private area

    Action with Alarm

    The alarm pictures be sent to appoint mailbox,the pic and video be upload to FTP Server

    General

    Working Temperature

    -10 °C to 60 °C

    Working Humidity

    10%-95% (Non-condensing)

    Power Supply

    DC12V±10%

    Power Consumption

    Max 12W

    Housing

    Metal Dome PTZ

    Weather Proof

    IP66

    Language Support

    CHN(S)/CHN(T)/ENG/KOR/JPN

     Model Number

     MP-B301I302M-WTA2

    Camera

     Image Sensor

     1/2.7" color CMOS,Hisilicon

    Min. Illumination

    Color: 0.1Lux @F1.2, B/W: 0.01Lux with IR on

     Lens

    Auto-Focus 2.7-13.5mm lens,5X Optical Zoom

     Shutter Time

    Auto

     IR Distance

    40-50m

     IR Board

     4pcs IR array leds

     White Balance

    Auto

     AGC

     Auto

     WDR

     Digital WDR

     DNR

     3D DNR

    BLC

    Auto

    HLC

    Auto

    Pan&Tilt

    Pan Speed/Angle

    Pan Speed:10°-30°/S,Speed Adjustable;Pan Angle:0°-355°

    Tilt Speed/Angle

    Tilt Speed:8°-25°/S,Speed Adjustable;Pan Angle:0°-90°

    Video

     Max. Image Resolution

    3MP(2304x1296)@20fps

     Frame Rate

    Main code stream:3MP(2304x1296)@20fps

    Auxiliary stream:800x448@20fps

     Video Compression

    H.265/H.264

     Video Bit Rate

    32Kbps-6144bps support self-adjustable as needed,default 1024Kbps

     Image Settings

    Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable

     Bit Superposition

    Support OSD name,time and date information superposition

     Web Access

    Support IE,Google,Firefox Browser

    Audio

     Two-way Audio

     Built-in microphone and speaker

     Audio Compression

     G.711

    Network

     Network Interface

     1xRJ45 10M/100M Ethernet Port

     Networking Protocol

     TCP/IP, HTTP, TCP, ICMP,UDP,ARP,ICMP,SMTP,FTP,DHCP,DNS DDNS,NTP,UPNP,RTSP

     WIFI

     WiFi 802.11b/g/n

     ONVIF

     ONVIF2.4

     AP Hotspot

     Support

    System

    Alarm I/O

    Motion detection alarm

    Storage

    Max support 64GB SD card,timing video storage,motion detection video storage;

    Motion Detection

    4 windows motion detection areas can be setting(sensitivity setting 1-100)

    Video Mask

    4 windows can be built to mask your private area

    Action with Alarm

    The alarm pictures be sent to appoint mailbox,the pic and video be upload to FTP Server

    General

    Working Temperature

    -10 °C to 60 °C

    Working Humidity

    10%-95% (Non-condensing)

    Power Supply

    DC12V±10%

    Power Consumption

    Max 12W

    Housing

    Metal Dome PTZ

    Weather Proof

    IP66

    Language Support

    CHN(S)/CHN(T)/ENG/KOR/JPN

     Model Number

     MP-B301I500M-WTA2

    Camera

     Image Sensor

     1/2.8" SONY color CMOS,Hisilicon

    Min. Illumination

    Color: 0.1Lux @F1.2, B/W: 0.01Lux with IR on

     Lens

    2.7-13.5mm Auto-Focus Lens,5X Zoom

     Shutter Time

    Auto

     IR Distance

    40-50m

     IR Board

     6pcs IR Array leds

     White Balance

    Auto

     AGC

     Auto

     WDR

     Digital WDR

     DNR

     3D DNR

    BLC

    Auto

    HLC

    Auto

    Pan&Tilt

    Pan Speed/Angle

    Pan Speed:10°-30°/S,Speed Adjustable;Pan Angle:0°-355°

    Tilt Speed/Angle

    Tilt Speed:8°-25°/S,Speed Adjustable;Pan Angle:0°-90°

    Video

     Max. Image Resolution

    5MP(2560x1920)@20fps

     Frame Rate

    Main code stream:5MP(2560x1920)@20fps,4MP(2560x1440)@20fps

    Auxiliary stream:800x448@20fps,640x352@20fps

     Video Compression

    H.265/H.264

     Video Bit Rate

    32Kbps-6144bps support self-adjustable as needed,default 1536Kbps

     Image Settings

    Brightness,Contrast,Saturation,Exposure,Upside Down,Mirror Adjustable

     Bit Superposition

    Support OSD name,time and date information superposition

     Web Access

    Support IE,Google,Firefox Browser

    Audio

     Two-way Audio

     Built-in microphone and speaker

     Audio Compression

     G.711

    Network

     Network Interface

     1xRJ45 10M/100M Ethernet Port

     Networking Protocol

     TCP/IP, HTTP, TCP, ICMP,UDP,ARP,ICMP,SMTP,FTP,DHCP,DNS DDNS,NTP,UPNP,RTSP

     WIFI

     WiFi 802.11b/g/n

     ONVIF

     ONVIF2.4

     AP Hotspot

     Support

    System

    Alarm I/O

    Motion detection alarm

    Storage

    Max support 64GB SD card,timing video storage,motion detection video storage;

    Motion Detection

    4 windows motion detection areas can be setting(sensitivity setting 1-100)

    Video Mask

    4 windows can be built to mask your private area

    Action with Alarm

    The alarm pictures be sent to appoint mailbox,the pic and video be upload to FTP Server

    General

    Working Temperature

    -10 °C to 60 °C

    Working Humidity

    10%-95% (Non-condensing)

    Power Supply

    DC12V±10%

    Power Consumption

    Max 12W

    Housing

    Metal Dome PTZ

    Weather Proof

    IP66

    Language Support

    CHN(S)/CHN(T)/ENG/KOR/JPN

    Included:

    1 x B301 PTZ Dome Camera
    4 x Installation Screws
    1 x User Manual
    1 x Package Box
