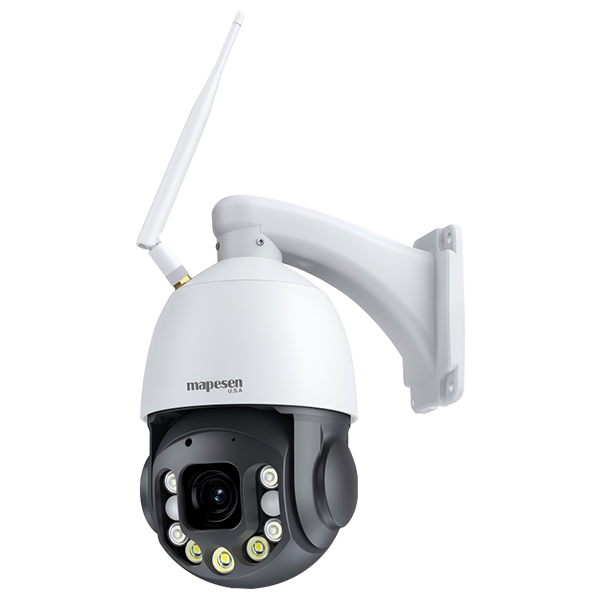

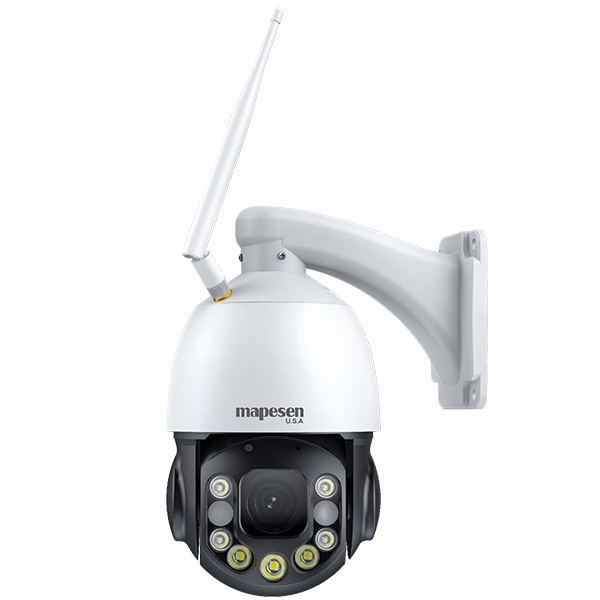

4.5 INCH Hybrid Light Speed Dome PTZ Camera Deepin Learning 22X with POE,WiFi,Two-Way Audio

· 22X Optical Zoom.

· Wi-Fi 802.11 b/g/n,AP Hotspot,ONVIF.

· S265/H.265/H.264 Encoding,Saving Half Storage Capacity with Our NVR.

· Horizontal Angle:0-360°,Vertical Angle 0-90°,Pan /Tilt Speed 1-40°/S.

· Support 128pcs Preset Points,Crusing,Guarding Point, Idle Actoion.

· Smart Hybrid Light (Able to set Intelligent Mode/Infrared Mode/Full Color Mode),WarmLight 60m,IR Light 100m.

· With 6 kinds Intelligent AI Analysis Function: Area Intrusion,Line-Cross Detection, Person Loitering, Absent Alarm,Vehicle Illegal Parking,Vehicle Retrograde.

· Embedded with Intelligent Humanoid Tracking Capture Algorithm, Supporting Humanoid and Vehicle Detection In Complex Environments.

· AI Humanoid Detection/Tracking & Motion Detection Alarm,Support Alarm Detection Area Setting,Alarm Linkage Voice Broadcast with Customized Contents.

· DC12V / POE(IEEE.802.3af),HMTL5 Plug-in Free.

· AGC,DWDR/Real WDR,3D DNR, BLC,4KV Lighting Protection, IP66 Waterproof.

Model Number	B405Q43XLZ1A2-PTW
Camera
Image Sensor	1/2.66" low illumination CMOS sensor
Min. Illumination	Color: [email protected](AGC ON),B/W:0Lux(IR ON)
Shutter Time	1/1~1/30000s
Lens
Lens	22X Optical Zoom, Auto-Focus 4.7-94.06mm lens
Iris	F1.6-2.7
Optical Zoom	22X
Pan View Angle	55.4° (Wide) / 2.9° (Tele)
Near Focus	100mm ~ 1000mm (Near ~Far Focus)
Zoom Speed	About 4S(Optics Far-Tele)
Lens Initialization	Built-in
PTZ
Pan	0 °~ 360°
Horizontal Speed	0.1 °~ 40°/ s
Tilt	0~90°
Vertical Speed	0.1 °~ 40°/ s
Preset	128 PCS
Cruise	Support
Illuminator
Day & Night Mode	Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
IR LEDs	6PCS Infrared LEDs[$add]3PCS warm LEDs
Warm Light Distance	60m
Infrared Light Distance	100m
Auto Control Warm Light	Auto
Video
Max. Image Resolution	4MP(2560*1440@25fps)
Video Compression	S.265/H.265/H.264
Frame Rate	Main stream:PAL:4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x80)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps
Video Bit Rate	1024kbps~8Mbps
Image Settings	Brightness,contrast,saturation,sharpness are adjustable
White Balance	Auto
Gain Control	Low/Mid/High
BLC	Support
HLC	Support
WDR	DWDR
Noise Reduction	3D NR
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711u / 64kbps
Network
Network Connection	WiFi,Wired
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP
Connection Protocol	ONVIF/SLINK
Mobile Remote Control	Support Android & iOS system mobile to access
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control
Event
Alarm	Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Human Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm
Line-Cross Detection	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm
Person Loitering	a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm
Absent Alarm	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm
Vehicle illegal Parking	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm
Vehicle Retrograde	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Support, Max 512G, Micro SD(EXT3/EXT4) card local storage
Alarm	No
Power	1 DC female head
Antenna	1 Antenna
General
POE	Support
Power Supply	DC12V 4A
Power Consumption	Max 28W
Protection	TVS3000V lightning protection, surge protection, voltage transient protection
Housing	Metal and Plastic PTZ Dome
Weather Proof	IP66
Working Temperature	-10 °C to 60 °C
Working Humidity	20%-80% (Non-condensing)

Model Number	B405Q60WLZ1A2-PTW
Camera
Image Sensor	1/2.7" low illumination CMOS sensor
Min. Illumination	Color: 0.2Lux/F1.6, B/W: 0.02Lux/F1.6
Shutter Time	1/1~1/30000s
Lens
Lens	22X Optical Zoom, Auto-Focus 4.7-94.06mm lens
Iris	F1.6-2.7
Optical Zoom	22X
Pan View Angle	55.4° (Wide) / 2.9° (Tele)
Near Focus	100mm ~ 1000mm (Near ~Far Focus)
Zoom Speed	About 4S(Optics Far-Tele)
Lens Initialization	Built-in
PTZ
Pan	0 °~ 360°
Horizontal Speed	0.1 °~ 40°/ s
Tilt	0~90°
Vertical Speed	0.1 °~ 40°/ s
Preset	128 PCS
Cruise	Support
Illuminator
Day & Night Mode	Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
IR LEDs	6PCS Infrared LEDs[$add]3PCS warm LEDs
Warm Light Distance	60m
Infrared Light Distance	100m
Auto Control Warm Light	Auto
Video
Max. Image Resolution	6MP(3072x2048)@25fps
Video Compression	S.265/H.265/H.264
Frame Rate	Main Stream: 6MP(3072x2048@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: D1(720576)@25fps,VGA(640480)@25fps
Video Bit Rate	1024kbps~8Mbps
Image Settings	Brightness,contrast,saturation,sharpness are adjustable
White Balance	Auto
Gain Control	Low/Mid/High
BLC	Support
HLC	Support
WDR	Real WDR
Noise Reduction	3D NR
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711u / 64kbps
Network
Network Connection	WiFi,Wired
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP
Connection Protocol	ONVIF/SLINK
Mobile Remote Control	Support Android & iOS system mobile to access
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control
Event
Alarm	Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Line-Cross Detection	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Person Loitering	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Absent Alarm	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle illegal Parking	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle Retrograde	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Support, Max 512G, Micro SD(EXT3/EXT4) card local storage
Alarm	No
Power	1 DC female head
Antenna	1 Antenna
General
POE	Support
Power Supply	DC12V 4A
Power Consumption	Max 28W
Protection	TVS3000V lightning protection, surge protection, voltage transient protection
Housing	Metal and Plastic PTZ Dome
Weather Proof	IP66
Working Temperature	-10 °C to 60 °C
Working Humidity	20%-80% (Non-condensing)

Model Number	B405Q81WLZ1A2-PTW
Camera
Image Sensor	1/2.7" low illumination CMOS sensor
Min. Illumination	Color: 0.2Lux/F1.6, B/W: 0.02Lux/F1.6
Shutter Time	1/1~1/30000s
Lens
Lens	22X Optical Zoom, Auto-Focus 4.7-94.06mm lens
Iris	F1.6-2.7
Optical Zoom	22X
Pan View Angle	55.4° (Wide) / 2.9° (Tele)
Near Focus	100mm ~ 1000mm (Near ~Far Focus)
Zoom Speed	About 4S(Optics Far-Tele)
Lens Initialization	Built-in
PTZ
Pan	0 °~ 360°
Horizontal Speed	0.1 °~ 40°/ s
Tilt	0~90°
Vertical Speed	0.1 °~ 40°/ s
Preset	128 PCS
Cruise	Support
Illuminator
Day & Night Mode	Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode)
IR LEDs	6PCS Infrared LEDs[$add]3PCS warm LEDs
Warm Light Distance	60m
Infrared Light Distance	100m
Auto Control Warm Light	Auto
Video
Max. Image Resolution	8MP(840x2160)@25fps
Video Compression	S.265/H.265/H.264
Frame Rate	Main Stream: 8MP(3840x2160@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: D1(720576)@25fps,VGA(640480)@25fps
Video Bit Rate	1024kbps~8Mbps
Image Settings	Brightness,contrast,saturation,sharpness are adjustable
White Balance	Auto
Gain Control	Low/Mid/High
BLC	Support
HLC	Support
WDR	Digital WDR
Noise Reduction	3D NR
Audio
Audio Input	Support, built-in microphones
Audio Output	Support, built-in speaker
Voice Broadcast Alarm	Built-in 8 different broadcast options
Audio Compression	G.711u / 64kbps
Network
Network Connection	WiFi,Wired
Network Interface	1*RJ45 10M/100M Self-adaptation Ethernet Port
Networking Protocol	TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP
Connection Protocol	ONVIF/SLINK
Mobile Remote Control	Support Android & iOS system mobile to access
PC	Support
Web Access	Support HTML5 remote login operation(Free plug-in)
Device Abnormal Inspection	Support network broken alarm, IP conflict alarm, illegal visiting alarm
Security Mode	HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control
Event
Alarm	Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm
Linkage	Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming
Basic Event
Motion Detection	Set detection area, can set multi-level sensitivity
Occlusion Alarm	Support 1 area
Privacy Mask	Support 4 areas
Smart Event
Human Detection	It can detect target ≤5-10 persons at the same time
	Humanoid pixel ≥40X40
	Detection Ratio ≥99%(meet above requirement)
	Capture Corresponding Speed ≤1s
	Support specified area detection, default full screen
	Error detection rate 2% or less
	Maximum detection frame rate is 5fps /s
Area Intrusion	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Line-Cross Detection	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm
Person Loitering	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Absent Alarm	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle illegal Parking	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm
Vehicle Retrograde	a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Support, Max 512G, Micro SD(EXT3/EXT4) card local storage
Alarm	No
Power	1 DC female head
Antenna	1 Antenna
General
POE	Support
Power Supply	DC12V 4A
Power Consumption	Max 28W
Protection	TVS3000V lightning protection, surge protection, voltage transient protection
Housing	Metal and Plastic PTZ Dome
Weather Proof	IP66
Working Temperature	-10 °C to 60 °C
Working Humidity	20%-80% (Non-condensing)

Company Name：*

First Name：*

Last Name：*

JobTitle：*

Fax：

Phone：*

Web Page：

Email：*

States / Province：

Address：Line 1：

Address：Line 2：

City：*

Region / Country：*

Zip Code：

EnquiryType： Careers Product Quality Technical Support Sales Marketing

Enquiry Description：

AI Scenario-based Smart Cameras

Intelligent Traffic

Network Products

Analog HD products

Onboard Security

TUYA Eco-System Products

IoT Visualization Products

Networking Transmission

Accessories

B405 WiFi 22X PTZ Series

Solution

Support

Press

Partner

Corporate

B405 WiFi 22X PTZ Series
