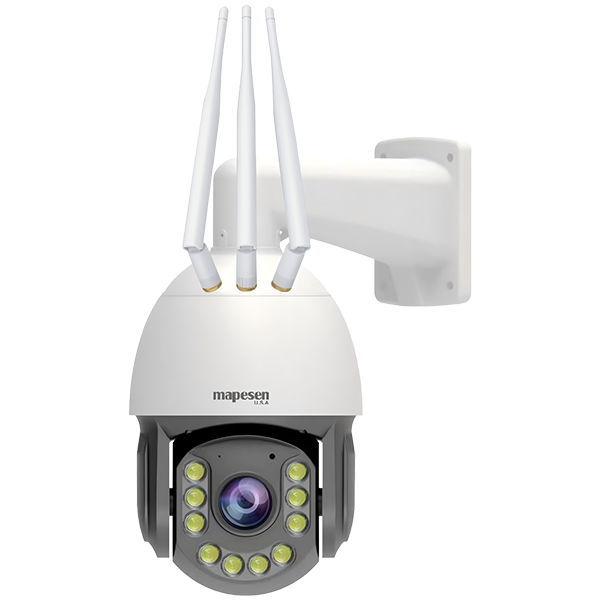

4MP 6MP 4K 22X 4G Hybrid Light Network Speed Dome with Smart Analysis
| Model Number | B705Q43XLZ1A2-TG1 |
| Camera | |
| Image Sensor | 1/2.66" low illumination CMOS sensor |
| Min. Illumination | Color: [email protected](AGC ON),B/W:0Lux(IR ON) |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 4MP(2560*1440@25fps) |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main stream:PAL: 4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x80)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Human Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3 antennas |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
| Model Number | B705Q60WLZ1A2-TG1 |
| Camera | |
| Image Sensor | 1/2.7" low illumination CMOS sensor |
| Min. Illumination | Color: 0.2Lux/F1.6, B/W: 0.02Lux/F1.6 |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 6MP(3072x2048)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 6MP(3072x2048@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: D1(720*576)@25fps,VGA(640*480)@25fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | Real WDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3pcs antenna |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
| Model Number | B705Q81WLZ1A2-TG1 |
| Camera | |
| Image Sensor | 1/2.66" low illumination CMOS sensor |
| Min. Illumination | Color: [email protected](AGC ON),B/W:0Lux(IR ON) |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 8MP(3840x2160)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 8MP(3840x2160@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: PAL:D1(720*576)@25fps,VGA(640*480)@25fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Human Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3 antennas |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
| Model Number | B705Q43XLZ1A2-TG2 |
| Camera | |
| Image Sensor | 1/2.66" low illumination CMOS sensor |
| Min. Illumination | Color: [email protected](AGC ON),B/W:0Lux(IR ON) |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 4MP(2560*1440@25fps) |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main stream:PAL: 4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL:D1(720x576)@25fps,VGA(640x80)@25fps,Q720P(640x360)@25fps,864x480@25fpsNTSC:D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Human Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3 antennas |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
| Model Number | B705Q60WLZ1A2-TG2 |
| Camera | |
| Image Sensor | 1/2.7" low illumination CMOS sensor |
| Min. Illumination | Color: 0.2Lux/F1.6, B/W: 0.02Lux/F1.6 |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 6MP(3072x2048)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 6MP(3072x2048@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: D1(720*576)@25fps,VGA(640*480)@25fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | Real WDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3pcs antenna |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
| Model Number | B705Q81WLZ1A2-TG2 |
| Camera | |
| Image Sensor | 1/2.66" low illumination CMOS sensor |
| Min. Illumination | Color: [email protected](AGC ON),B/W:0Lux(IR ON) |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 22X Optical Zoom, Auto-Focus 4.7-94.06mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 22X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0 °~ 360° |
| Horizontal Speed | 0.1 °~ 40°/ s |
| Tilt | 0~90° |
| Vertical Speed | 0.1 °~ 40°/ s |
| Preset | 128 PCS |
| Cruise | Support |
| Illuminator | |
| Day & Night Mode | Hybrid Light (Able to Set Intelligent Mode/Infrared Mode/Full Color Mode) |
| IR LEDs | 6PCS Hybrid LEDs[$add]4PCS Laser LEDs |
| Warm Light Distance | 100m |
| Infrared Light Distance | 150m |
| Auto Control Warm Light | Auto |
| Video | |
| Max. Image Resolution | 8MP(3840x2160)@25fps |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 8MP(3840x2160@25fps) , 5MP (2592x1904@25fps,)4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fpsSub-Stream: PAL:D1(720*576)@25fps,VGA(640*480)@25fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711u / 64kbps |
| Network | |
| Network Connection | 4G |
| 4G Europe Standard(G1) | B1,B3,B5,B7,B8,B20 |
| 4G USA Standard(G2) | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 |
| AP | Support |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Human Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power | 1 DC female head |
| Antenna | 3 antennas |
| General | |
| Power Supply | DC12V 5A |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Housing | Metal PTZ Dome |
| Weather Proof | IP66 |
| Working Temperature | -10 °C to 60 °C |
| Working Humidity | 20%-80% (Non-condensing) |
mapesen
mapesen
