| Model Number | 80BQ50SLFA2-PTB |
| Camera | |
| Image Sensor | 1/1.8" 5MP low illumination CMOS sensor |
| Min. Illumination | Color: 0.001Lux @F1.2, B/W: 0Lux with IR on |
| Shutter Time | Auto(1/5 - 1/100000) |
| Lens | |
| Lens Type | Fixed Lens 3.6mm @F1.0 |
| Lens Resolution | 5MP |
| Illuminator | |
| Light Distance | Warm Light 60m |
| IR LEDs | 6pcs warm LEDs |
| Day & Night Mode | Full Color |
| Video | |
| Max. Image Resolution | 5MP(2880*1620@25fps) |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main stream:PAL: 5MP (2880x1620@25fps),4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 5MP (2880x1620@30fps),4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fps)Sub-stream:PAL: D1@25fps,VGA@25fps,Q720P@25fps,864x480@25fps NTSC: D1@30fps,VGA@30fps,Q720P@30fps,864x480@30fps |
| Image Settings | Brightness, contrast, saturation, sharpness, chroma adjustable |
| White Balance | Auto / Manual |
| Gain Control | Yes |
| BLC | Yes |
| HLC | Yes |
| WDR | Digital WDR |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) |
| Defog | Off/On |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay (OSD) | Support time OSD/Title OSD, multi-line OSD (two lines) Main stream font support 12-60pt,sub stream font support 12-36pt |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711A/U 8k 64bi |
| Network | |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP |
| Connection Protocol | ONVIF/HIK/GB28181 Protocol |
| APP(P2P) | Support |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Preview Simultaneously Video Number | 4 |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G |
| Alarm | Support, 1CH input/1CH output |
| RS-485 | No |
| Reset | No |
| General | |
| POE | Yes |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 6.5W |
| Surge Protection | 6KV |

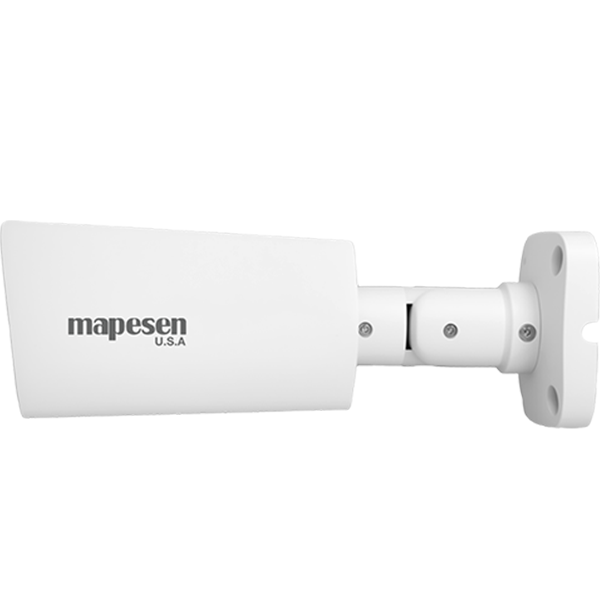

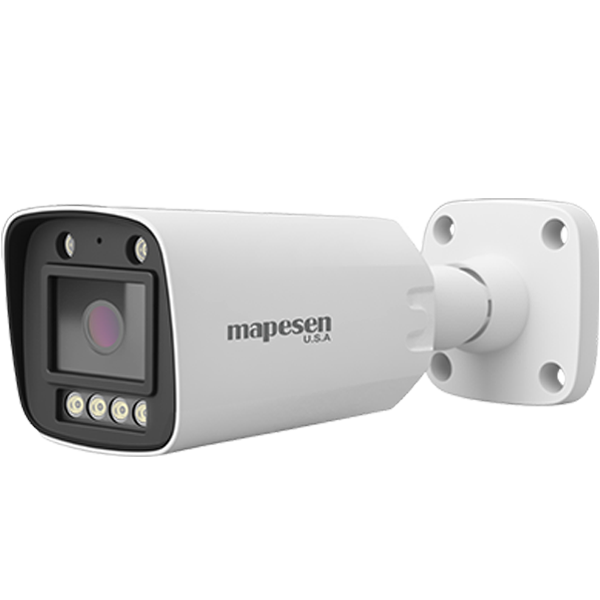

| Housing | Metal Bullet |
| Weather Proof | IP67 |
| Working Temperature | -20 °C to 50 °C |
| Working Humidity | 10%-95% (Non-condensing) |
| Model Number | 80BQ60SLFA2-PTB |
| Camera | |
| Image Sensor | 1/1.8" 6MP low illumination CMOS sensor |
| Min. Illumination | Color: 0.001Lux @F1.2, B/W: 0Lux with IR on |
| Shutter Time | Auto(1/5 - 1/100000) |
| Lens | |
| Lens Type | Fixed Lens 3.6mm @F1.0 |
| Lens Resolution | 6MP |
| Illuminator | |
| Light Distance | Warm Light 60m |
| IR LEDs | 6pcs warm LEDs |
| Day & Night Mode | Full Color Mode |
| Video | |
| Max. Image Resolution | 6MP(3072*2048@25fps) |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main stream:PAL: 6MP(3072x2048@25fps) 5MP (2592x1904@25fps,)4MP(2560x1440@25fps),3MP(2304x1296@25fps),2MP(1920x1080@25fps NTSC: 6MP(3072x2048@30fps),5MP(2592x1904@30fps) 4MP(2560x1440@30fps),3MP(2304x1296@30fps),2MP(1920x1080@30fpsSub-stream:PAL: D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps NTSC: D1(720x576)@30fps,VGA(640x480)@30fps,Q720P(640x360)@30fps,864x480@30fps |
| Image Settings | Brightness, contrast, saturation, sharpness, chroma adjustable |
| White Balance | Auto / Manual |
| Gain Control | Yes |
| BLC | Yes |
| HLC | Yes |
| WDR | Digital WDR |
| Noise Reduction | 3D NR(Off/Low/Middle/High/Higher) |
| Defog | Off/On |
| Mirror | Off/horizontal mirror/vertical mirror/180° flip |
| Character Overlay (OSD) | Support time OSD/Title OSD, multi-line OSD (two lines) Main stream font support 12-60pt,sub stream font support 12-36pt |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Voice Broadcast Alarm | Built-in 8 different broadcast options |
| Audio Compression | G.711A/U 8k 64bi |
| Network | |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,PPPOE,RTSP,RTMP,DDNS,UPNP,FTP |
| Connection Protocol | ONVIF,SLINK |
| APP(P2P) | Support |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Preview Simultaneously Video Number | 4 |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | Authorized user name and password,HTTPS encryption,AES connecting encryption, RTSP vertification |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail \ voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail \ voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail \ voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail \ voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G |
| Alarm | Support, 1CH input/1CH output |
| RS-485 | No |
| Reset | No |
| General | |
| POE | Support |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 6.5W |
| Surge Protection | 6KV |

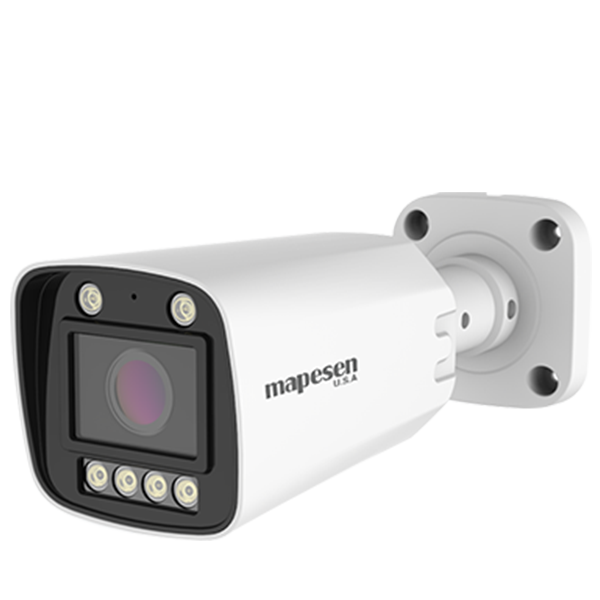

| Housing | Metal Bullet |
| Weather Proof | IP67 |
| Working Temperature | -20 °C to 50 °C |
| Working Humidity | 10%-95% (Non-condensing) |
