Smart Port Integrated Communication Platform Solution

Project Background

Port security is a complex system engineering project, which is characterized by dispersed mobility, complex operation, human-machine intersection, multiple points and wide coverage, and continuous operation day and night. In order to solve the difficulties of small wireless voice coverage, large video blind spots, reliance on manual control, and inability to coordinate and command in emergencies, our company provides smart port integration solutions, and conducts in-depth integration of port wireless communication systems, video surveillance systems, telephone systems, video conferencing systems, personnel positioning and facial recognition, etc., which greatly solves the problems of port work efficiency, management and safety, and helps the intelligent transformation of ports.

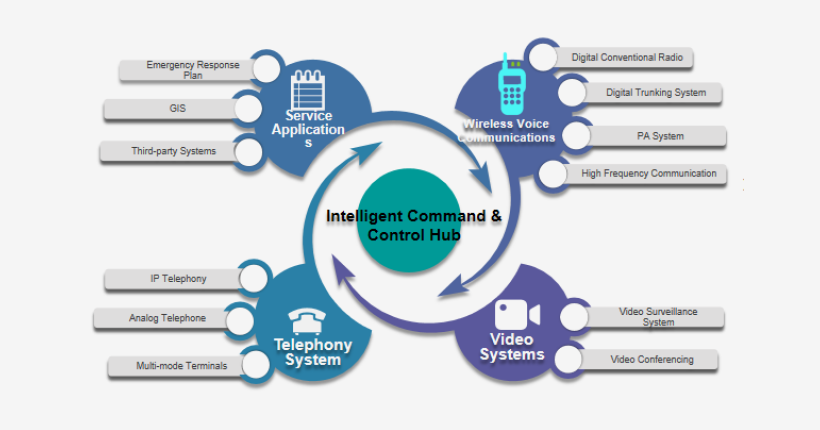

To achieve production command and dispatch for all units, this system provides a public-network-integrated wireless intercom platform that also supports video, image, and multimedia intercom services. It realizes unified management, unified dispatch, and converged broadband-narrowband communication.

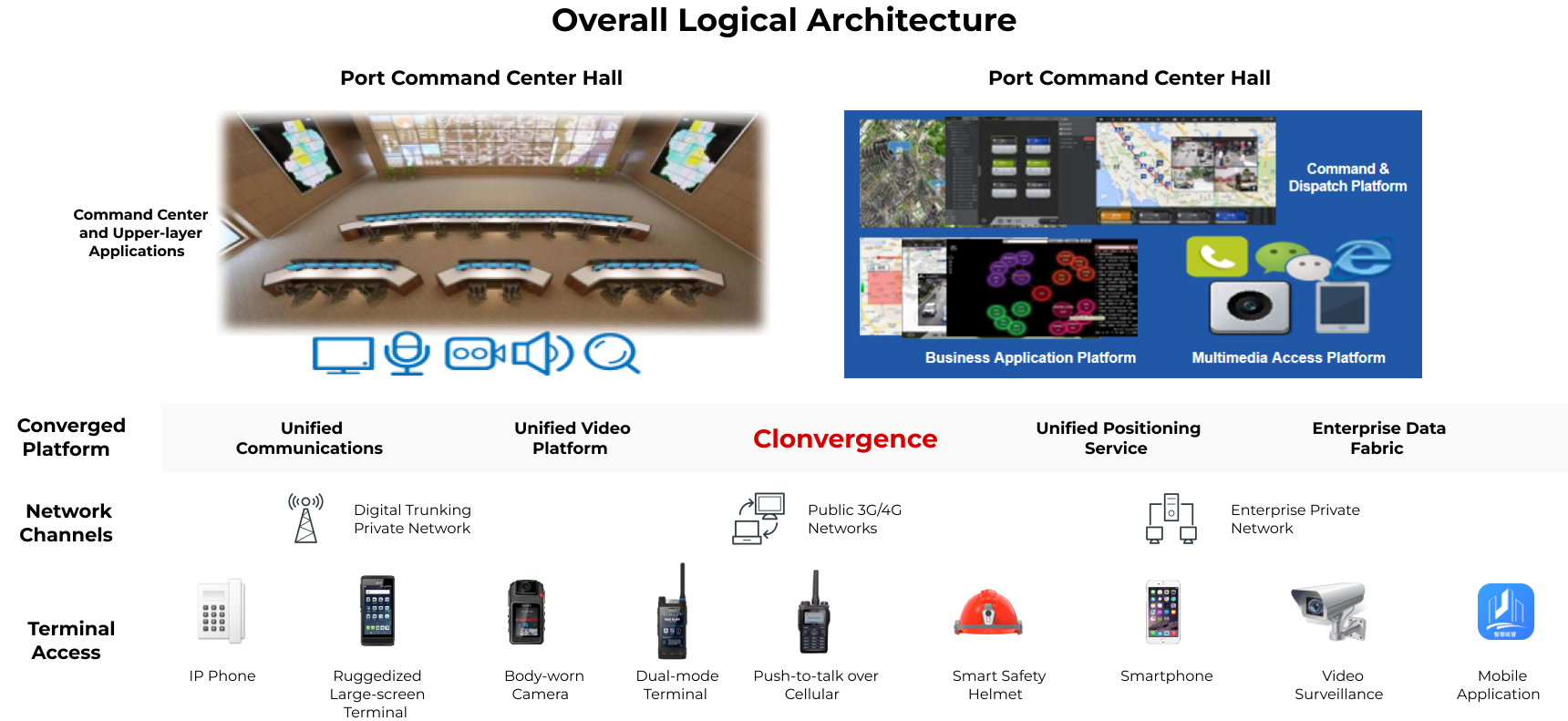

The concept of converged communication construction is to integrate all audio-visual communication systems without affecting the normal operation of existing systems, achieving unified command through multi-network integration on a single platform.

To solve the problem of data traceability during system-wide calls, providing strong supporting materials for subsequent event investigation and process review.

Key Technology Roadmap

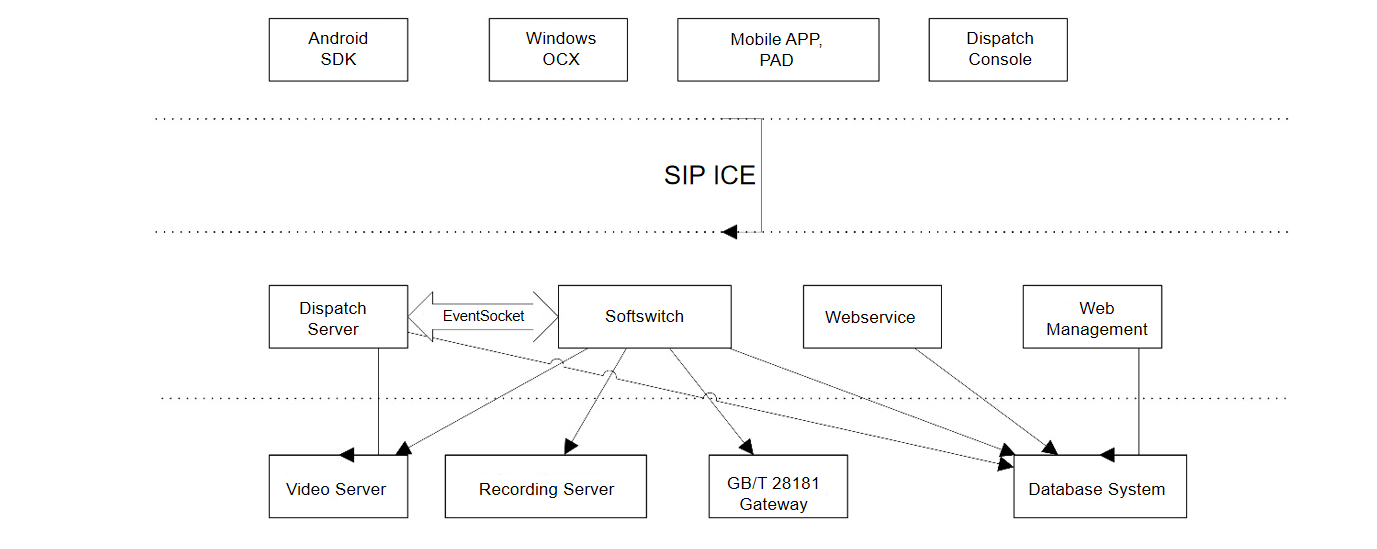

Information interaction terminals, dispatch software, WebService, FreeSWITCH server (softswitch), recording servers, surveillance gateways, and other equipment manage, query, and dispatch data through internal protocols.

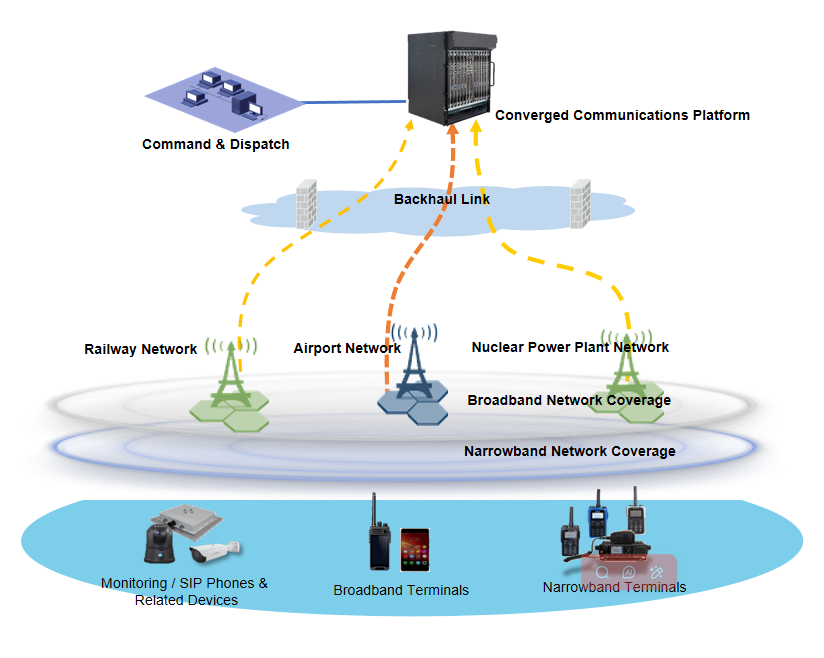

Multi-region Communication Coordination

  • Business Convergence:
  • Integrate voice/video communication across airports, railways, and nuclear power plants under different networks, achieving broadband-narrowband service convergence and seamless connectivity.
  • Converged Communication Platform:
  • Supports multi-type terminal access and data aggregation, breaks through public/private network physical isolation, and enables interoperability between legacy and new systems, as well as cross-vendor heterogeneous networks.
  • Value & Significance:
  • In the short term, converged communication breaks down barriers between multiple systems. In the long term, convergence represents resource and cost efficiency.

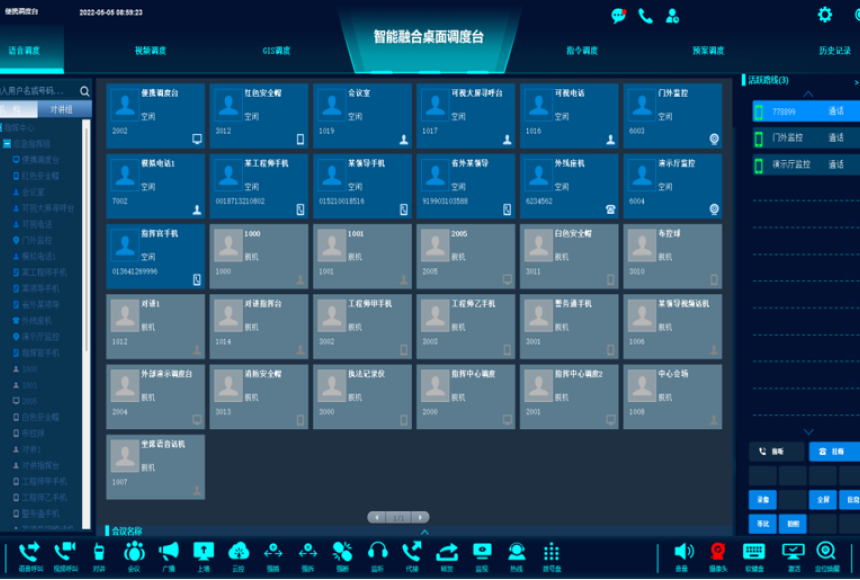

Voice Convergence Dispatch

  • Public Network Group Communication
  • Private Call, Group Call, Conference Call,SOS, Ad-hoc Group
  • Interoperable Two-Way Radio Communication
  • PDT, DMR, TETRA, POC, Analog FM Radio,
  • Telephony System Integration
  • PSTN Fixed-line, Mobile Cellular, VoIP Phone，Satellite Phone
  • Broadcast System Integration
  • IP Network Broadcasting, Analog PA System,SIP-based Broadcasting, Conference Audio Mixer

SOS / Fall Detection Alarm

SOS：Supports one-touch emergency alerts by field personnel

Fall Detection Alarm：Supports automatic fall detection alerts from field personnel, triggering rescue protocols at the command center upon activation.

SOS / Fall

Detection Alarm

Alarm Record

Query

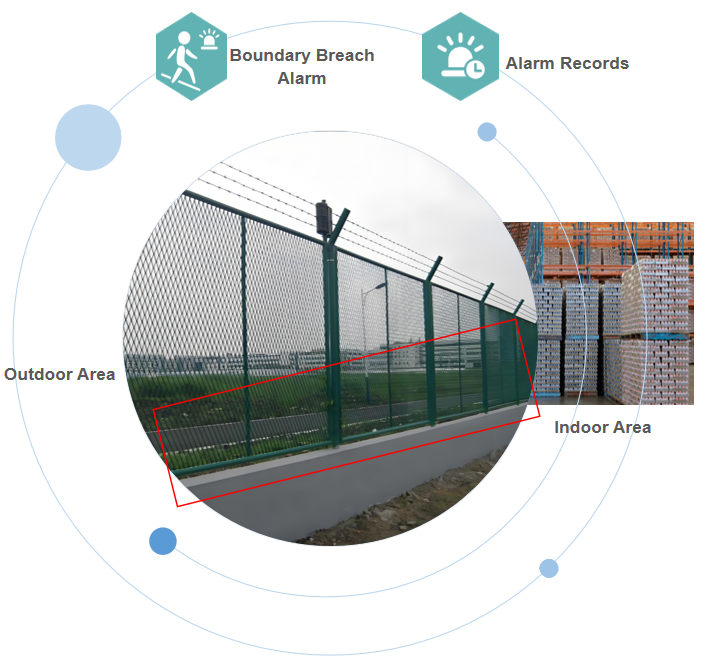

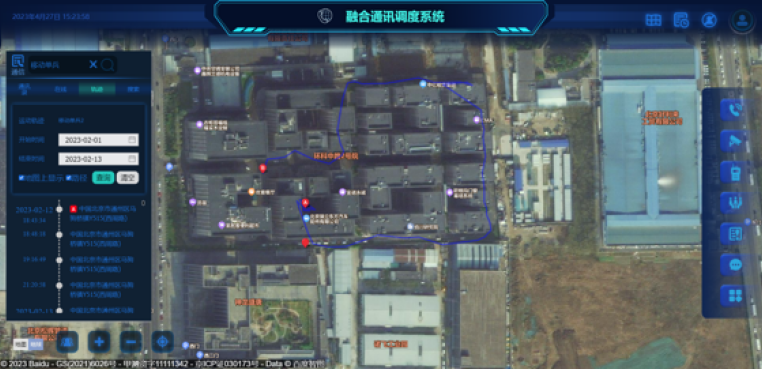

The dispatch console can draw electronic fences on the map and set rules for boundary-crossing alarms. When personnel (using locatable terminals) leave or enter the fenced area (depending on the alarm type setting), a boundary-crossing alarm will be triggered, notifying both the dispatch console and the personnel who crossed the boundary.

Platform Features - Video AI Recognition

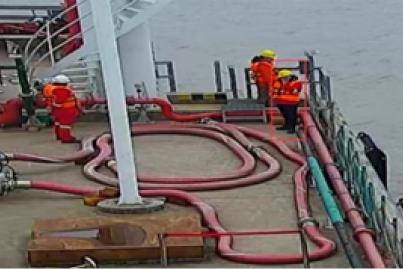

Video surveillance is widely deployed. By integrating video feeds from key areas of concern, the platform enables real-time monitoring of video footage and promptly notifies relevant personnel when issues are detected. The platform supports video streams in multiple formats for live monitoring of on-site conditions, while AI video gateways empower the system with intelligent video recognition capabilities.

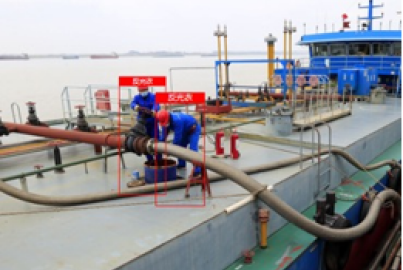

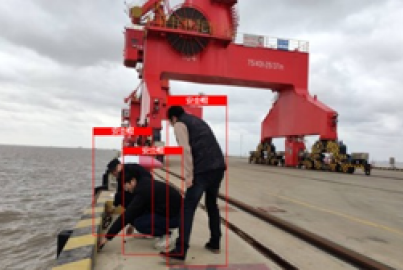

Reflective Vest Detection

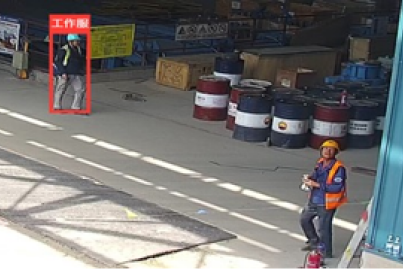

Work Uniform Recognition

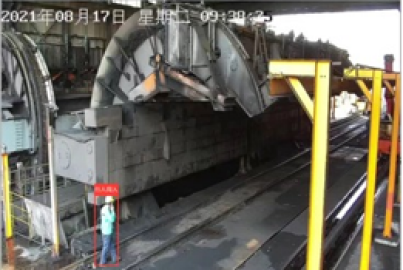

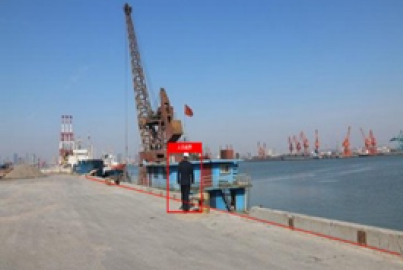

Personnel Boundary Violation

Phone Usage Detection

Pedestrian Intrusion

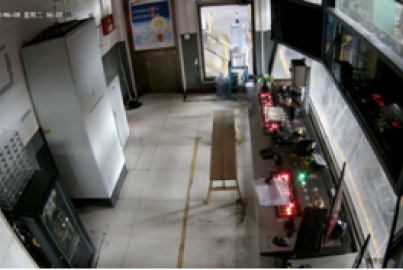

Unattended Post Detection

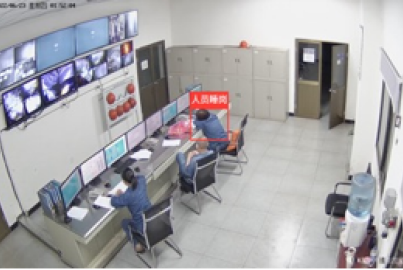

Drowsiness at Post Detection

Safety Helmet Identification

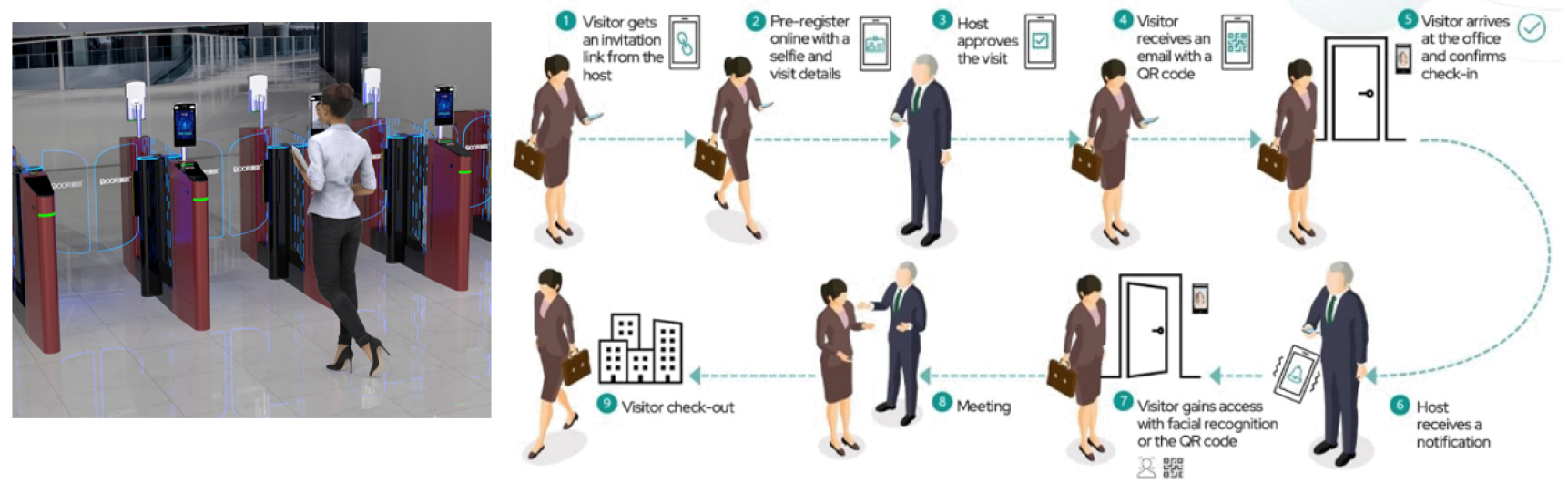

Visitor Management

An important aspect of security operations is to manage the entry and exit of visitors, ensuring no abnormalities or safety incidents occur during their visits. The platform provides visitor management services, supporting various scenarios such as advanced reservations, temporary access, and multiple entries. It records visitors' entry and exit times and maintains access logs for future reference.
