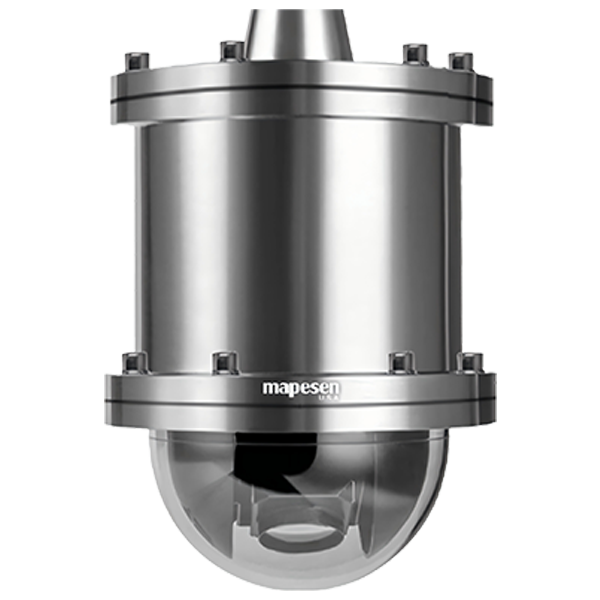

| Model Number | BE501H3-Q506-P |
| Camera | |
| Image Sensor | 1/2.7" low illumination CMOS sensor |
| Min. Illumination | Color: 0.2Lux/F1.6, B/W: 0.02Lux/F1.6 |
| Shutter Time | 1/1~1/30000s |
| Lens | |
| Lens | 33X Optical Zoom, Auto-Focus 4.5-135mm lens |
| Iris | F1.6-2.7 |
| Optical Zoom | 33X |
| Pan View Angle | 55.4° (Wide) / 2.9° (Tele) |
| Near Focus | 100mm ~ 1000mm (Near ~Far Focus) |
| Zoom Speed | About 4S(Optics Far-Tele) |
| Lens Initialization | Built-in |
| PTZ | |
| Pan | 0° ~ 360° endless |
| Horizontal Speed | 240°/S |
| Tilt | 0-90° auto flip |
| Vertical Speed | 120°/S |
| Preset | 128PCS |
| Patrol | 4pcs |
| Line Scan | 1 x AB line scan |
| Auto-scan | 1pcs |
| Park Action | Preset/patrol/None |
| Illuminator | |
| IR LEDs | No IR LEDs |
| Video | |
| Max. Image Resolution | 5MP (2592x1904@25fps) |
| Video Compression | S.265/H.265/H.264 |
| Frame Rate | Main Stream: 5MP (2592x1904@25fps), 4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fps)Sub-Stream: D1(720*576)@25fps,VGA(640*480)@25fps |
| Video Bit Rate | 1024kbps~8Mbps |
| Image Settings | Brightness,contrast,saturation,sharpness are adjustable |
| White Balance | Auto |
| Gain Control | Low/Mid/High |
| BLC | Support |
| HLC | Support |
| WDR | Real WDR |
| Noise Reduction | 3D NR |
| Audio | |
| Audio Input/Output | No |
| Network | |
| Network Connection | Network |
| Network Interface | 1*RJ45 10M/100M Self-adaptation Ethernet Port |
| Networking Protocol | TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,SMTP |
| Connection Protocol | ONVIF/SLINK |
| Mobile Remote Control | Support Android & iOS system mobile to access |
| PC | Support |
| Web Access | Support HTML5 remote login operation(Free plug-in) |
| Device Abnormal Inspection | Support network broken alarm, IP conflict alarm, illegal visiting alarm |
| Security Mode | HTTPS encrypted transmission. Forced password change on first boot ensures password security, Password protection and multi-user access control |
| Event | |
| Alarm | Area Intrusion, Line-Cross Detection, Person Staying, Person Absent, Vehicle illegal Parking, Vehicle Retrograde, Motion Detection Alarm, AI Humanoid Detection and Tracking Alarm |
| Linkage | Upload to FTP, Upload Picture, send email, trigger recording, trigger capture,Arming time support 24h arming/ night arming /customized arming |
| Basic Event | |
| Motion Detection | Set detection area, can set multi-level sensitivity |
| Occlusion Alarm | Support 1 area |
| Privacy Mask | Support 4 areas |
| Smart Event | |
| Human Detection | It can detect target ≤5-10 persons at the same time |
| Humanoid pixel ≥40X40 | |
| Detection Ratio ≥99%(meet above requirement) | |
| Capture Corresponding Speed ≤1s | |
| Support specified area detection, default full screen | |
| Error detection rate 2% or less | |
| Maximum detection frame rate is 5fps /s | |
| Area Intrusion | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Line-Cross Detection | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection line, supports detection directions: A->B: c, Support video stream overlay detection box;d, Support specified target type detection: human, motor vehicle (non motor vehicle also can be detected);e, Linkage setting support: upload mail/voice broadcast alarm |
| Person Loitering | a, 1) Support All day arming/night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support Loitering time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Absent Alarm | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support absent time setting[10-3600]S;e, Support at least 1-3 people on duty;f, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle illegal Parking | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, Support one detection area, and can draw a multi deformation detection area (Detection area made of six points);c, Support video stream overlay detection box;d, Support illegal parking time setting[10-3600]S;e, Linkage setting support: upload mail/voice broadcast alarm |
| Vehicle Retrograde | a, 1) Support All day arming /night arming mode;2) Support to configure the customized deployment time by week, with 4 time periods per day;b, It supports one detection areas, and can draw a multi deformation detection area (Detection area made of four points);c, Support video stream overlay detection box;d, Supports Four detection directions, Detection line support B->A directione, Linkage setting support: upload mail/voice broadcast alarm |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512G, Micro SD(EXT3/EXT4) card local storage |
| Alarm | No |
| Power Interface | 1 DC power port |
| General | |
| Explosion-proof | ExD IIC T6 Gb/ ExtD A21 IP68 T80℃ |
| Protection Grade | IP68 |
| Shell Material | 304 stainless steel |
| POE | Support |
| Power Supply | DC12V±10% /POE |
| Power Consumption | Max 28W |
| Protection | TVS3000V lightning protection, surge protection, voltage transient protection |
| Working Temperature | -25 °C to 70 °C |
| Working Humidity | 10%-95% (Non-condensing) |
| Overall Dimensions | ￠210 X 300 mm(￠210 X 410 including wall mounted bracket) |
| Weight | ≤12Kg |
