| Model Number | 80BG601LFA2-PTBR-FI |
| System | |
| System Processor | Embedded Linux, ARM Cortex-A7 MP2 Processor,1 TOPS Computing Power. |
| Image Sensor | 1/2.9" low illumination CMOS sensor GC4023 |
| Min. Illumination | 0.0002Lux(IR ON) |
| Lens | |
| Lens Type | 6mm Fixed Lens @F1.6 |
| Lens Resolution | 6MP |
| Illuminator | |
| Light Distance | Warm Light 60m,IR Light 80m |
| IR LEDs | 6pcs Hybrid Light |
| Day & Night Mode | Hybrid Light Mode/ Infrared Mode/ Full Color Mode |
| Video | |
| Max. Image Resolution | 6MP(3200x1800) |
| Video Compression | H.265/H.264 |
| Frame Rate( | Main Stream:25fps:3200x1800,2880x1620,2560x1440,2304x1296,1920x1080Secondary Stream:25fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288 |
| Video Bit Rate | Main Stream:256~8192Kbps,default 3072KbpsSecondary Stream:68~1024Kbps,default 682Kbps |
| Image Settings | Support Brightness,contrast,saturation,and sharpness adjustment |
| WDR | DWDR |
| Synchronization | Inter-Sync |
| SNR | 47.8dB |
| Noise Reduction | 3D NR |
| Defog | Support |
| Exposure Setting | Auto |
| General Features | Time Configruration, OSD Configuration,Privacy Masking,Log Management |
| Audio | |
| Audio Input | Support, built-in microphones |
| Audio Output | Support, built-in speaker |
| Audio Compression | G.711A/U |
| Network | |
| Network Connection Mode | Wired |
| Networking Protocol | HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS |
| Interface Protocol(API) | ONVIF,GB28181 |
| Web Access | Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English |
| Simultaneous Preview Channels | A maximum of 16 concurrent streams per client |
| Event | |
| Flame Detection | Detect a target flame size of 60*60 pixels under 1080P resolution. |
| Capable of detecting a 60x60px target at up to 20 meters, with performance optimized at 15 meters. | |
| Smart Event | Motion Detection(human), Intrusion Detection, Tripwire Detection |
| Linkage | Supports alerts via E-mail, Client Software, and Mobile App Push Notification. |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Support, Max 512GB SD card |
| Alarm | YES |
| RS-485 | YES |
| Reset | No |
| General | |
| User Management | Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest. |
| Restore Factory Settings | Reset via Web Browser and Mobile App |
| Power Supply | DC12V±10% /POE |
| Power Consumption | <6.6W |
| Surge Protection | 4KV |

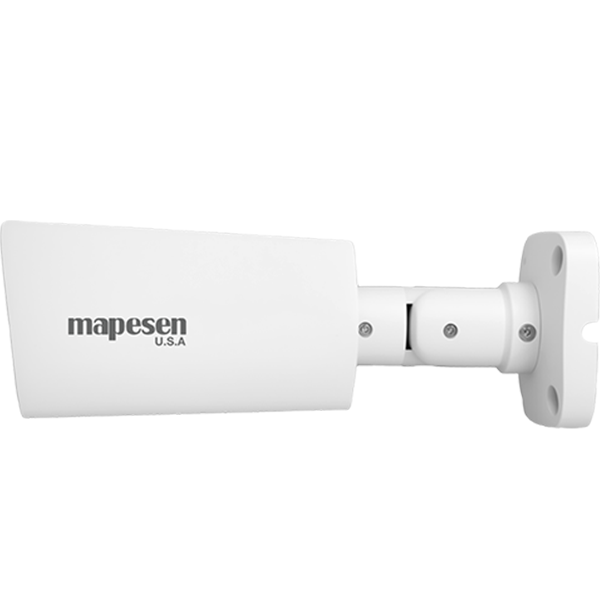

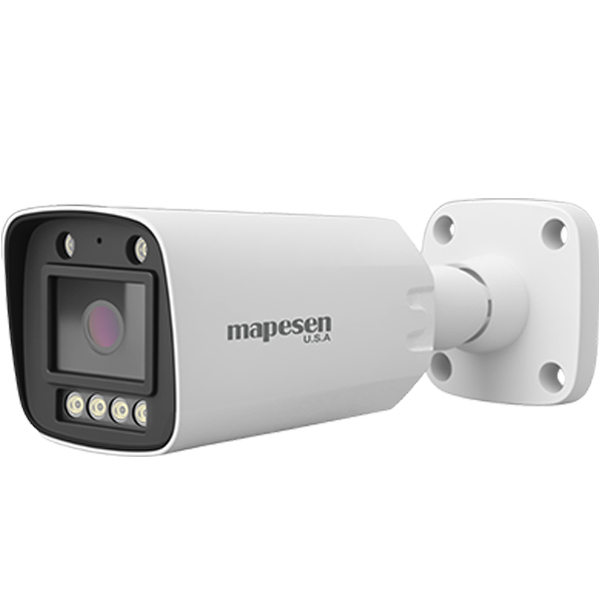

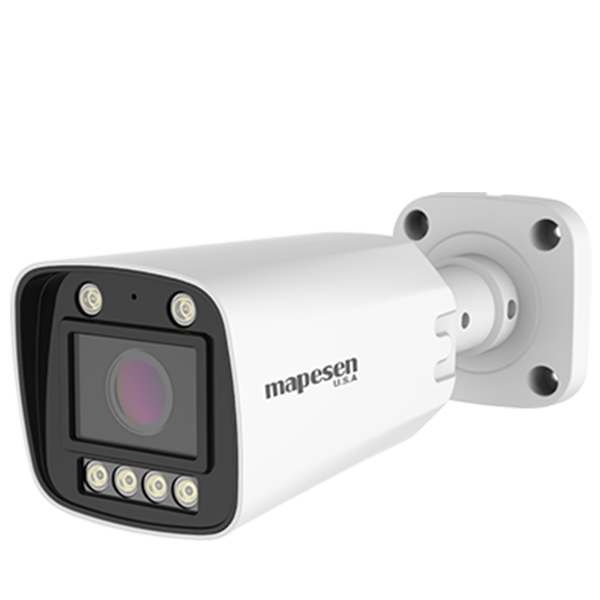

| Housing | Metal Bullet |
| Weather Proof | IP66 |
| Working Temperature | -20 °C to 60 °C |
| Working Humidity | 10%-90% (Non-condensing) |
