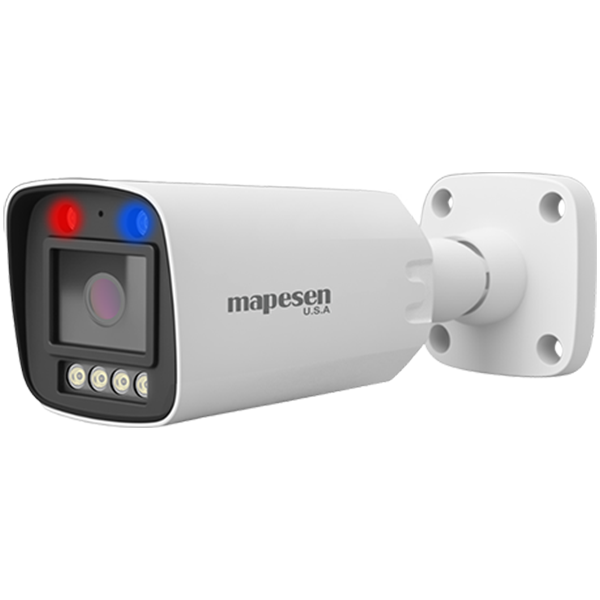

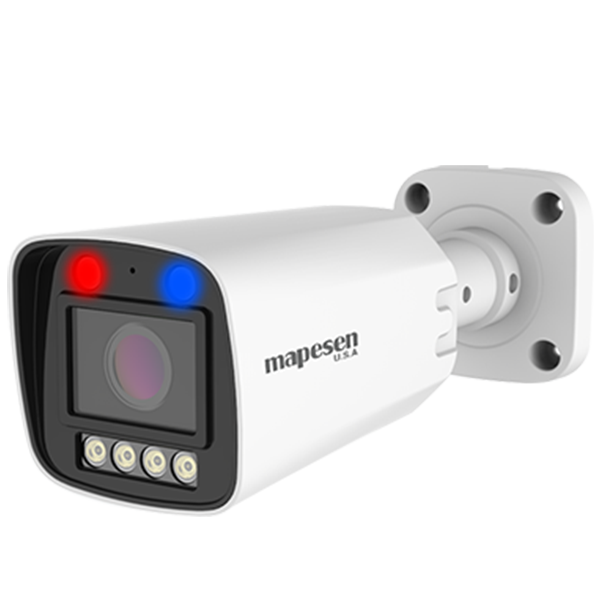

Model Number

80BAI80SM5A2-PTBA-LPR

System

System Processor

NT98528

Image Sensor

1/2.8" SONY IMX415 low illumination CMOS sensor

ROM

256M

RAM

512M

Min. Illumination

0Lux(IR ON)

Lens

Lens Type

3.3~10.5mm Motorized Lens @F1.6~3.1

Lens Resolution

8MP

Illuminator

Light Distance

Warm Light 60m,IR Light 80m

IR LEDs

4pcs Hybrid Light Core[$add]2pcs Strobe Warning Light LEDs

Day & Night Mode

Hybrid Light Mode/ Infrared Mode/ Full Color Mode

Video

Max. Image Resolution

8MP(3840x2160)

Video Compression

H.265/H.264

Frame Rate

Main Stream: 5-30fps:3840x2160,2560x1440,1920x1080

Secondary Stream: 5-30fps:720x576,720x480,704x576,640x360,640x480,512x288,352x288

Sub-Stream: 5-30fps:512x288,352x288

Video Bit Rate

Main Stream: 256~8192Kbps,default 4096Kbps

Secondary Stream: 16~1024Kbps,default 682Kbps

Image Settings

Support Brightness,contrast,saturation,and sharpness adjustment

WDR

HDR (DWDR)

Synchronization

Inter-Sync

Noise Reduction

3D NR

Defog

Support

Exposure Setting

Auto

General Features

Time Configruration, OSD Configuration,Privacy Masking,Log Management,Video Occlusion Alarm,Defocus Detection

Audio

Audio Input

Support, built-in microphones

Audio Output

Support, built-in speaker

Audio Compression

G.711A/U

Network

Network Connection Mode

Wired

Networking Protocol

HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS

Interface Protocol(API)

ONVIF,GB28181

Web Access

Support IE8[$add],Chrome18[$add],Firefox5.0[$add],Safari5.02[$add]browser,support Chinese and English

Simultaneous Preview Channels

A maximum of 16 concurrent streams per client

Event

Smart Event

Motion Detection(human), Intrusion Detection, Tripwire Detection, Defocus Detection, Video Occlusion Detection

Linkage

Supports alerts via E-mail, Client Software, and Mobile App Push Notification.

License Plate Recognition

License Plate Mode

Auto-focuses and zooms on vehicles for clearer plate recognition.

License Plate Recognition

Supported LPR Algorithms: Multi-national (incl. CN, EU, US, JP, KR, TW¹, TR, BR, SG, TH, IN, PH, etc.)

Customization: Supported

Recognition Speed

40KM/h

Recognition Distance

Automatic license plate recognition and capture within 5-25meters

Vehicle Structured Information

Vehicle identification by license plate number

License Plate Recognition Features

Number

White&Black List

Support

License Plate Capture

License Plate Capture

Real-time video license plate capture, TF card storage, PC upload

Interface

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Support, Max 512GB SD card

Alarm

YES

RS-485

NO

Audio

YES

Reset

No

General

User Management

Supports up to 12 users with 3-level permissions: Administrator, Operator, and Guest.

Power Supply

DC12V±10% /POE

Power Consumption

<10W

Surge Protection

4KV

Housing

Metal Bullet

Weather Proof

IP66

Working Temperature

-20 °C to 60 °C

Working Humidity

10%-90% (Non-condensing)

Application Scenarios

Parking Lot, Low-Speed Lane, Entrance /Exit Gate

Overall Dimension Drawing
