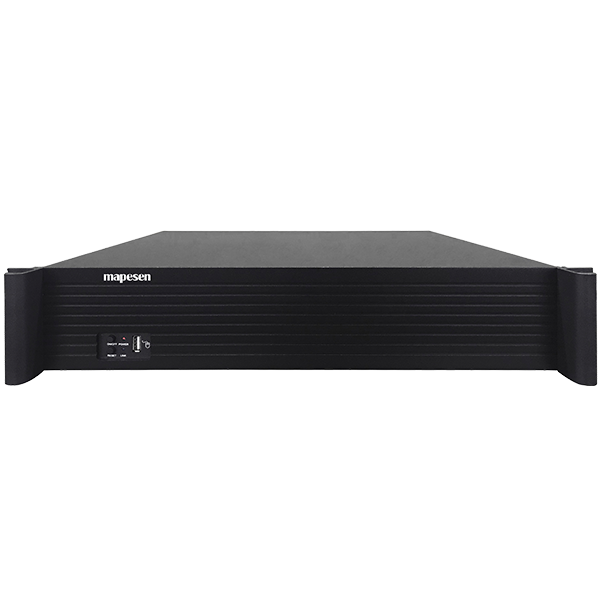

| Model | VMS-9-1024 |
| Function Characteristics | |
| Support connect 1024 CH (Sum of the total number of access video recorders)NVR. | |
| Support Max 4ch 4K synchronized video recording playback & Max 16ch synchronised playback. | |
| Support synchronized video recording, backup video record MP4 format. | |
| Support NVR remote playback. | |
| Support real-time alarm information display, alarm statistics. | |
| Support alarm information query. | |
| Support electronic zoom of preview and playback images . | |
| Support NTP etc Function. | |
| Support Channel Patrol Grouping, customized screen splicing display. | |
| Quick Boot, Enjoy Seamless Experience. | |
| Brand new UI interface, smooth operation. | |
| Newly optimized, with excellent compatibility with hard drives on the market. | |
| Supports selection of recording bitrate mode. | |
| Optimized access bandwidth up to 800M. | |
| Channel connection protocol SLINK (private protocol) | |
| Video & Audio | |
| Bandwidth | 800Mbps |
| NVR Connection | Support connect 1024CH (Sum of the total number of access video recorders)NVR |
| Video Resolution | 12MP/4K/1080P/720P/D1 |
| Video Compression | H.265[$add]/H.265/H.264 |
| Audio Compression | G.711A/G.711U |
| Multi-Screen Display | Support Single screen 8K display output.Support Two screen HDMI different resource display output (1*8K[$add]1*4K).Support four screen HDMI different resource display output (3*4K[$add]1*1080P). |
| Single-Screen Mode(Split-screen/Decoding) | 1(8K),2(2*12MP),4(4*12M),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*4K),10(2*4K[$add]8*3MP),16(16*5MP),25(25*3MP),36(36*D1),49(49*D1),64(64*D1),128(128*D1) |
| Dual-Screen Mode(Split-screen/Decoding) | 1(8K),2(2*12MP),4(4*4K),6(12M[$add]5*1080P),8(12M[$add]7*1080P),9(9*3MP),10(2*4K[$add]8*1080P),16(16*1080P),25(25*D1),36(36*D1),49(49*D1),64(64*D1),81(81*D1) ,100(81*D1) |
| Four-Screen Mode(Split-screen/Decoding) | 1(12MP),2(2*4K),4(4*5MP),6(4K[$add]5*1080P),8(5MP[$add]7*1080P),9(9*1080P),10(10*1080P),16(16*D1),25(25*D1),36(36*D1),49(49*D1) |
| Recording & Playback | |
| Recording Mode | Timer/alarm recording |
| Playback | Max 16ch simultaneous playback,supports local and remote playback, the decoding capability is the same as the preview decoding capability in the current mode. |
| Playback Mode | Routine playback, event playback |
| Backup Mode | USB Device/Network |
| Display Mode | 1)Mode 1: 1*HDMI output (12MP/D1[$add]128 preview[$add]16ch playback) |
| 2) Mode 2: 2*HDMI output (12MP/D1[$add]2 screen 100[$add]100preview[$add]16ch playback) | |
| 3) Mode 3: 4*HDMI output (8MP/D1[$add]4 screen 49[$add]49[$add]49[$add]49 preview[$add]16ch playback) | |
| Storage | |
| SATA | 9*SATA HDD |
| ESATA | 1 ESATA Expansion port |
| Capacity | Max 16TB HDD |
| Storage Path | Local hard disk,network HDD |
| Backup method | USB portable HDD,Memory Flash |
| Interface | |
| Network Interface | 2pcs RJ 45 1000M Port |
| USB Interface | 3pcs USB 2.0 |
| Audio I/O | 1/1 RCA Port |
| RS-485 | 1 pc RS-485 port |
| HDMI | 4 pcs |
| General | |
| Installation | Desktop Installation |
| Power Supply | AC 110V-240V 50-60HZ |
| Consumption | ≤250W |
| Working Conditions | Temperature: -10℃∼55℃; Humidity: 10%∼90% |
| Dimensions | Equipment: 440X430X90mm |
